✅ READY TO SHIP

FASS STK-1002 Diesel Fuel 5/8 Suction Tube Kit With Bulkhead Fitting

Save 5%
FASS Fuel Systems

SKU: FASS STK-1002

FASS STK-1002 Fuel Pickup Tube - Draw Straw

1 review

Price:
Sale price$84.55 Regular price$89.00

FASS Fuel Systems STK-1002 Diesel Fuel Bulkhead and Suction Tube Kit

FASS STK-1002 5/8" Suction Tube Kit Applications:

  • Universal Applications
  • Ford Powerstroke diesel engines.
  • GM Duramax diesel engines.
  • Dodge Cummins diesel engines
  • High Volume FASS Titanium Systems
  • High-Volume FASS Fuel Pumps

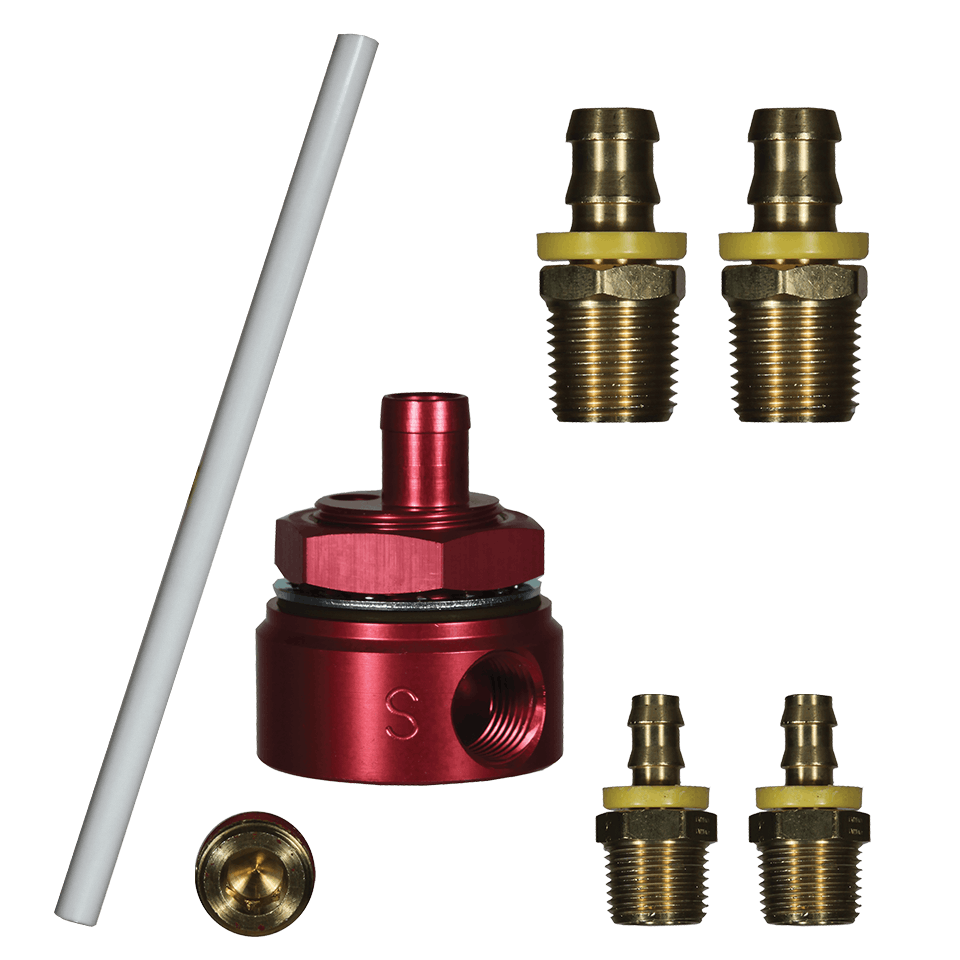

The STK-1002 Suction Tube Kit, machined from 6061 T-6 Billet Aluminum, is a Bulkhead Fitting comprised of a 5/8″ Suction Tube along with a ½” Fuel Return Port. This new and improved version from our previous STK-Kit allows the user to plumb their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck and significantly speeding up the installation process. The suction tube is fabricated of PTFE Teflon, which can be easily cut to adapt to different-depth fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.

FASS STK-1002 Bulkhead and Suction Tube Features:

  • Both Suction Tube and Return Port
  • Increase Fuel Delivery
  • Eliminates ¼ Tank Fuel Issue
  • Unique Design For Simple Installation
  • 5/8" Suction Tube Port
  • 1/2" Fuel Return Port

This FASS STK-1002 5/8" diesel fuel supply tube kit product is designed for use with the FASS Titanium Series Lift Pumps. This 5/8" suction tube offers increased fuel flow rates and a reduction in the coefficient of friction within the pipe. The larger diameter suction tube will improve fuel delivery and work perfectly with higher-volume fuel pumps. If you are purchasing a FASS Titanium Signature Series pump at the same time, check the contents of your kit, some Titanium Signature Series pumps include this STK-1002 item standard.

The kit's larger 5/8" suction tube reduces hydraulic restriction to improve fuel delivery rates. The FASS STK-1002 pickup tube helps to reduce the turbulent flow of diesel fuel with its 5/8" tube and larger fittings. KLM Performance recommends the installation of the fuel pickup tube kt when you are installing a higher-volume fuel pump.

    This FASS fuel pickup tube kit will be installed with FASS Titanium Series, Titanium Signature Series, and FASS Lift Pumps.

    The FASS STK-1002 Diesel Fuel, 5/8 Suction Tube Kit With Bulkhead Fitting, is the perfect item for quickly and easily installing a 5/8" suction tube, and it will help ensure that your diesel fuel system is secure with unrestricted fuel flow.

    NOTE: The Fass Fuel Systems STK-1002 is not legal for sale in these states:

    • California
    • Maine
    • Massachusetts
    • New York
    • Vermont

    FASS STK-1002 Suction Tube Kit is Made In The USA!



    by KLM Performance
    • Engine

      FASS Fuel Systems STK-1002 Diesel Fuel Bulkhead and Suction Tube Kit

      FASS STK-1002 5/8" Suction Tube Kit Applications:

      • Universal Applications
      • Ford Powerstroke diesel engines.
      • GM Duramax diesel engines.
      • Dodge Cummins diesel engines
      • High Volume FASS Titanium Systems
      • High-Volume FASS Fuel Pumps

      The STK-1002 Suction Tube Kit, machined from 6061 T-6 Billet Aluminum, is a Bulkhead Fitting comprised of a 5/8″ Suction Tube along with a ½” Fuel Return Port. This new and improved version from our previous STK-Kit allows the user to plumb their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck and significantly speeding up the installation process. The suction tube is fabricated of PTFE Teflon, which can be easily cut to adapt to different-depth fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.

      FASS STK-1002 Bulkhead and Suction Tube Features:

      • Both Suction Tube and Return Port
      • Increase Fuel Delivery
      • Eliminates ¼ Tank Fuel Issue
      • Unique Design For Simple Installation
      • 5/8" Suction Tube Port
      • 1/2" Fuel Return Port

      This FASS STK-1002 5/8" diesel fuel supply tube kit product is designed for use with the FASS Titanium Series Lift Pumps. This 5/8" suction tube offers increased fuel flow rates and a reduction in the coefficient of friction within the pipe. The larger diameter suction tube will improve fuel delivery and work perfectly with higher-volume fuel pumps. If you are purchasing a FASS Titanium Signature Series pump at the same time, check the contents of your kit, some Titanium Signature Series pumps include this STK-1002 item standard.

      The kit's larger 5/8" suction tube reduces hydraulic restriction to improve fuel delivery rates. The FASS STK-1002 pickup tube helps to reduce the turbulent flow of diesel fuel with its 5/8" tube and larger fittings. KLM Performance recommends the installation of the fuel pickup tube kt when you are installing a higher-volume fuel pump.

        This FASS fuel pickup tube kit will be installed with FASS Titanium Series, Titanium Signature Series, and FASS Lift Pumps.

        The FASS STK-1002 Diesel Fuel, 5/8 Suction Tube Kit With Bulkhead Fitting, is the perfect item for quickly and easily installing a 5/8" suction tube, and it will help ensure that your diesel fuel system is secure with unrestricted fuel flow.

        NOTE: The Fass Fuel Systems STK-1002 is not legal for sale in these states:

        • California
        • Maine
        • Massachusetts
        • New York
        • Vermont

        FASS STK-1002 Suction Tube Kit is Made In The USA!
