2003 To 2012 Dodge Ram T Style Steering Linkage

Mopar Dodge Ram T - Style Steering Upgrade Kit

2003 to 2013 Dodge Ram 2500 and 3500 Pickup Steering Linkage Upgrade Kit

NOTE: This is the newest and most up to date version of the Mopar Dodge Ram T Style Steering Linkage Upgrade Kit. This T Style Steering Linkage is not affected by any of the recalls implemented by Chrysler on earlier versions of the steering linkage previously available. Genuine OEM Mopar Heavy Duty T Style Steering Linkage Upgrade Package for Dodge Ram trucks.

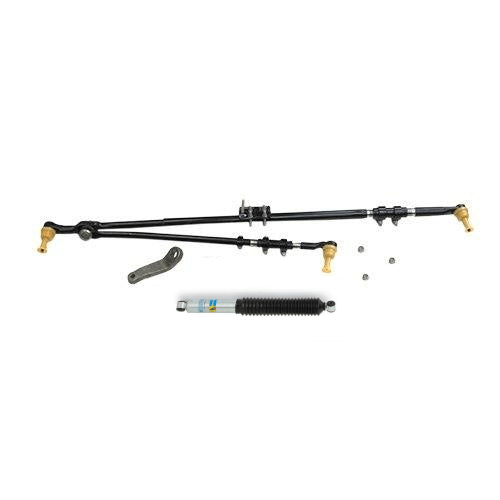

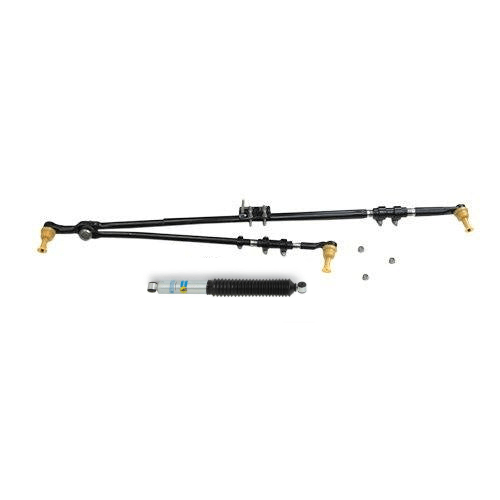

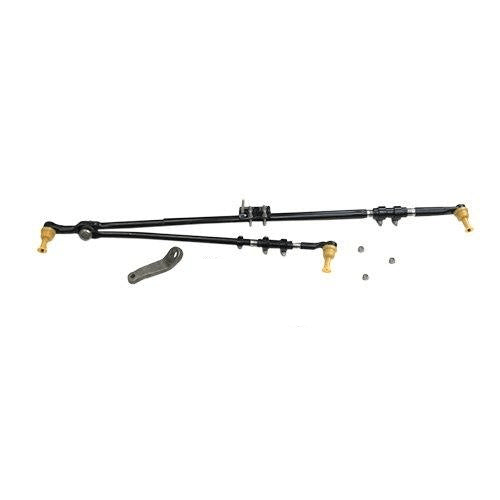

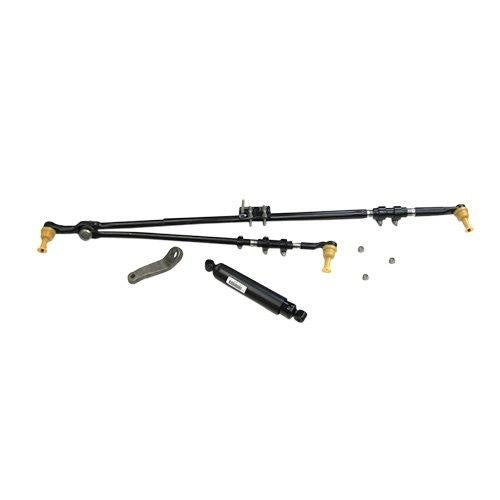

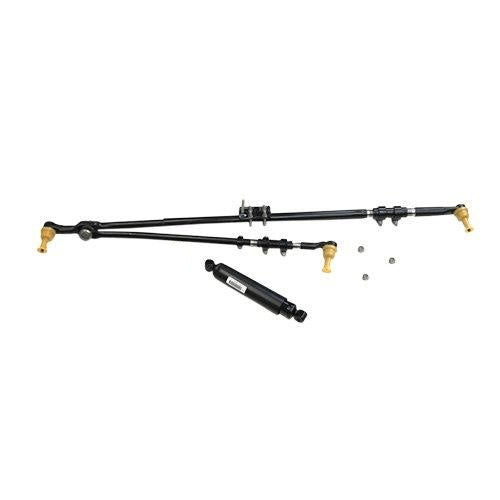

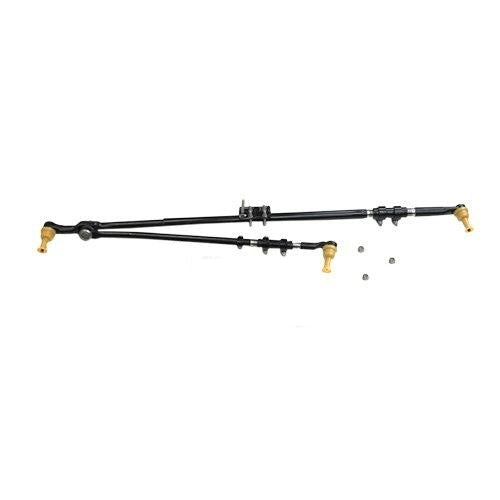

KLM Performance sells this Mopar T Style Steering Linkage for the Dodge Ram trucks as a complete kit with all the necessary parts or installation. This T Style of steering linkage can be used to replace the entire steering linkage on your truck. This New Mopar Front Steering Linkage Upgrade kit includes:

• Pitman Arm
• Drag Link
• Inner Tie Rod
• Outer Tie Rods
• Adjusting Sleeves
• Steering Damper Shock
• Mounting Nuts

The Mopar 2009 T-Style Dodge Ram Steering Linkage Upgrade Kit is designed for installation on the following Dodge Ram trucks:

• 2003 to 2008 Dodge Ram 2500 4x4 - Gas and Diesel powered vehicles with the Y Style steering linkage.

• 2003 to 2008 Dodge Ram 3500 4x4 - Gas and Diesel powered vehicles with the Y Style steering linkage.
• 2009 to 2013 Dodge Ram 2500 4x4 - Gas and Diesel powered vehicles with the T Style steering linkage.
• 2009 to 2013 Dodge Ram 3500 4x4 - Gas and Diesel powered vehicles with the T Style steering linkage.
• 2005 to 2008 Dodge Ram 1500 Megacab 4X4

The Mopar 2009 Dodge Ram Steering Linkage Upgrade Kit from KLM Performance includes the following MOPAR parts:

• 1 - 52122362AL T-Type Steering Linkage Assembly
• 3 - 6505623AA Nylock Tie Rod Nuts

NOTE: THE OTHER VARIANTS OF THIS KIT ARE AVAILABLE AS OPTIONS WITH THE SELECTION MENUS FOR THIS KIT.

NOTE: MOPAR part # 68039930AA Pitman Arm is only necessary if your truck was built before March 1st, 2008 and your truck has not been upgraded to the Mopar Six Bolt Steering Linkage.  There is no steering damper included in this kit. KLM Performance recommends the purchase of a new Lower Steering Stabilizer with this Mopar 2009 Dodge Ram T Style Steering Linkage Upgrade Kit. We offer two different options for a lower steering stabilizer as an option with this kit. This Mopar Steering Upgrade is the latest version available and is not affected by any of the nationwide recalls of this steering linkage!This T Style Steering Linkage is now backed by a NEW 2 Year Unlimited Mileage by Chrysler! The Pitman arm sold with this kit will not work on the new Dodge Ram 6 Bolt Steering Box! If you are installing this steering linkage on a 2009 or newer Dodge Ram truck, you will not need the Pitman Arm.

The Mopar 2009 Dodge Ram Steering Linkage Upgrade Kit offers the following advantages:

• Provides A dramatic improvement in steering response and feel.
• The kit now ties the front wheels together eliminating independent toe in and out.
• The new Mopar Steering Linkage Kit reduces the all too common issue of uneven tire wear in the front of your Dodge Ram truck.

• The new T-type linkage set-up is three times stronger than the original factory-installed steering linkage.
• The new drag link went from a 1.250" to a 1.580" outside diameter linkage.
• Component size has been increased - everything is much more significant.

KLM Performance recommends the purchase of a Lower Steering Stabilizer with this Mopar 2009 Dodge Ram Steering Linkage Upgrade Kit.

The Mopar 2009 Dodge Ram Steering Linkage Upgrade Kit for the 2003 to 2008 Dodge Ram 2500/3500 4x4 was released to address the none steering issues covered under the TSB #22-005-06 issued 10/07/2006.

"Daimler Issued A Technical Service Bulletin # 22-005-06 On 10/07/2006 For 4x4 Models 2500/3500 Shimmy On Rough Road After Hitting Bump Or Pothole.
Chrysler states They Want the Steering Damper Inspected For Resistance Both Ways After Removing.

Replace Damper With New P/n 52106909ae If Fails Test. Front Tire Air Pressures At 65 Psi For 235/80r17e And 245/70r17e Tires, 60psi For 265/70r17e And 285/70r17e.
They Also Want Tie Rod Ends Inspected For Play .045 Max. Also, Inspect Dust Cover On Tie Rod Ends And See If Can Be Rotated By Hand Or Is Free Or Lose.

If Cover Is Free Or Loose Replace Regardless If No Play. Applies To Model Years 2003 to 2008.

Death Wobble occurs in the Dodge Ram trucks when one or more of the following conditions are present.

• Tires of incorrect load ratings are installed on your Dodge Ram truck.

• Incorrect tire pressures
• Track Bar ends have excessive play
• Balls Joints have excessive play
• Steering Gear Box is worn
• Tie Rods are worn
• Steering Stabilizer Shock has failed

Mopar 09 Steering Upgrade Kit | 2003 to 2013 Dodge Ram 2500/3500 | T-Style Steering Upgrade | Dodge Ram Steering Linkage Upgrade

NOTE: The Mopar 09 Steering Upgrade Kit for 2003 to 2008 2500/3500 Dodge Ram trucks needs to be installed to the proper Torque Specifications. The use of an impact wrench or air hammer may cause damage to the Mopar 2009 Steering Upgrade Kit.

This is the most current version of the Mopar Steering Upgrade Kit which replaces these previous parts:

• Mopar 52122362AF
• Mopar 68039930AA
• Mopar 5154661AC
• Mopar 6505623AA
• Mopar 6505623AA
• Mopar 52122362AF
• Mopar 52122362AG
• Mopar 52122362AH
• Mopar 68039930AA
• Mopar 5154661AC
• Mopar 68039930
• Mopar 52122362AI
• Mopar 52122362AJ
• Mopar 52122362AL

Mopar 2009 Steering Upgrade Kit for 2003 through 2013 Dodge Ram 2500 and 3500 Trucks was designed by Mopar to eliminate the dreaded Death Wobble condition that occurs on these trucks!
