Fluidampr

Fluidampr 870211

Fluidampr 870211 6.0L Ford PowerStroke Dual Alternator

Fluidampr 870211 6.0l ford powerstroke dual alternator the fluidampr 870211 high performance diesel damper fits the 2003-2007 ford vehicles equipped with the 6.0l powerstroke motor that run dual alternators. specifications of the fluidampr 870211 2003 - 2007 ford 6.0l powerstroke dual alternator fluidampr performance diesel series damper material = steel coated in a black zinc finish outside diameter is 8-7/8

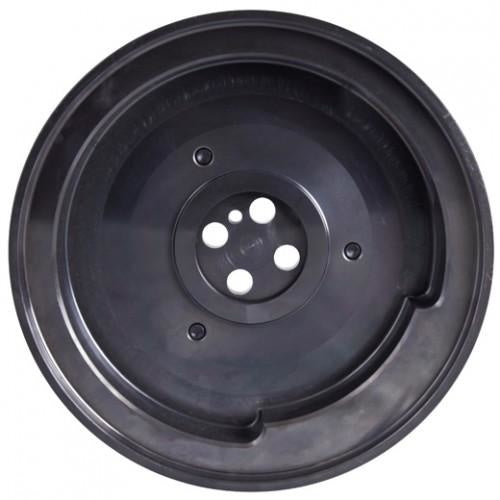

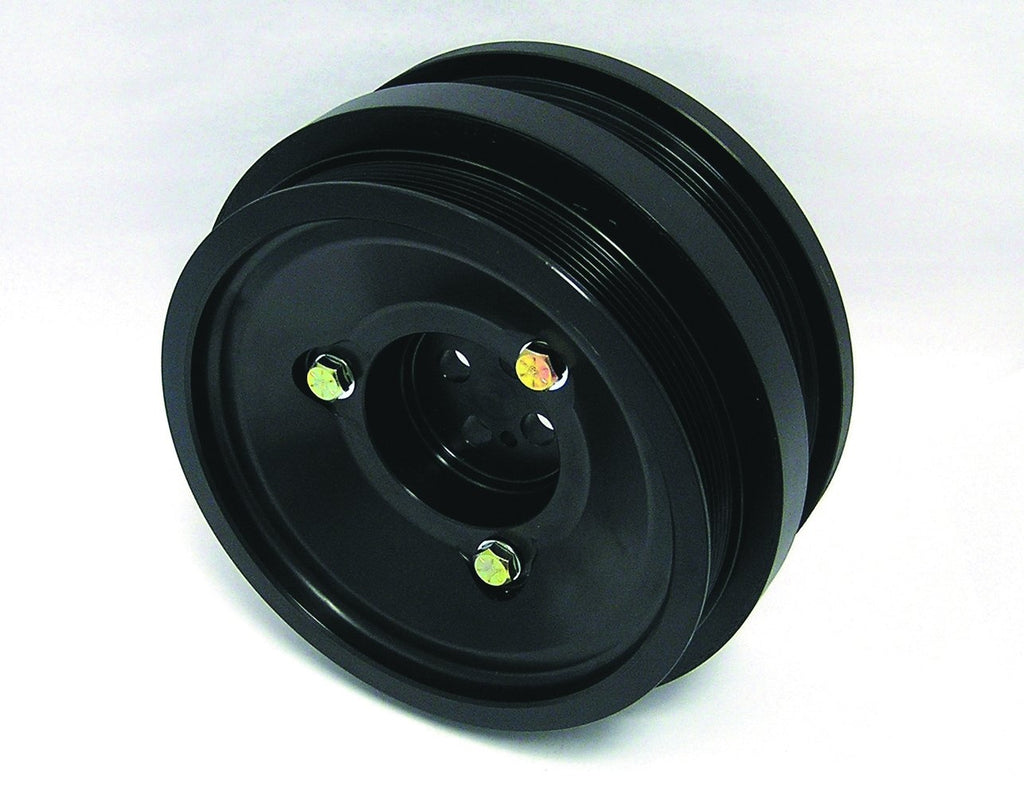

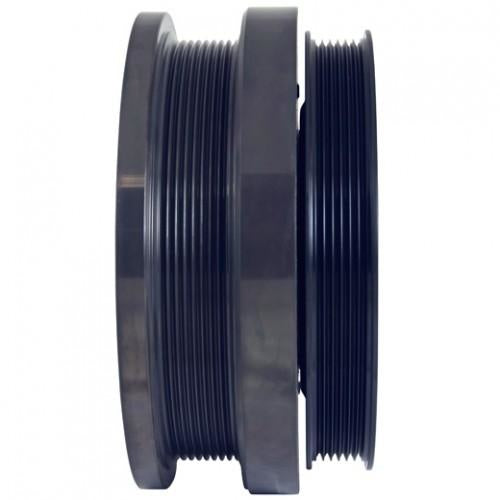

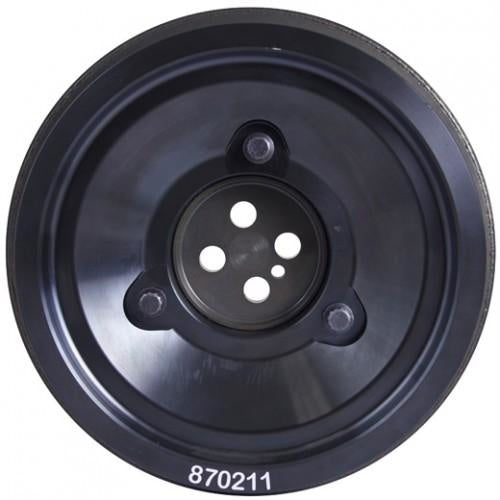

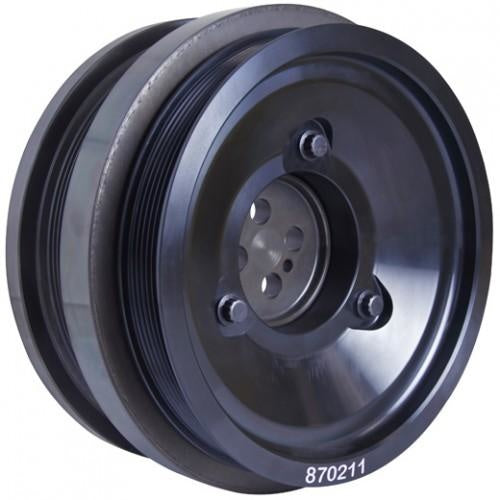

Fluidampr 870211 Ford 6.0L Powerstroke Dual Alternator Harmonic Damper

The Fluidampr 870211 High Performance Diesel Damper applications:

  • 2003 to 2007 Ford F350 Vehicles equipped with the 6.0L Powerstroke motor that is equipped with dual alternators.
  • 2003 to 2007 Ford F450 Vehicles equipped with the 6.0L Powerstroke motor that is equipped with dual alternators.
  • 2003 to 2007 Ford F550 Vehicles equipped with the 6.0L Powerstroke motor that is equipped with dual alternators.

Specifications of the Fluidampr Ford 6.0L Powerstroke Dual Alternator Fluidampr Performance Harmonic Damper

  • Material = Steel
  • Coated in a Black Zinc Finish
  • Outside Diameter is 8-7/8."
  • Unit Weighs 29.1 pounds.
  • Balance = External

By installing the new Fluidampr Performance Diesel Damper on your 2003 to 2007 Ford 6.0L Dual Alternator equipped Powerstroke diesel engine you will:

  •  Protect your engine from destructive torsional vibrations
  •  Increase Torque and Horsepower output.
  •  Save your crankshaft
  •  Stabilize your valve-train

Fluidampr 870211 2003-2009 Ford 6.0L Power Stroke w/ dual alternators Torque Specifications

The mounting bolts used to install the Fluidampr 870211 External 2003 to 2009 Ford 6.0L Power Stroke are to be torqued to 50 Ft-Lbs. plus an additional 90 degrees. The Fluidamper Harmonic Damper for the 2003 to 2009 Ford 6.0L Powerstroke diesel engines requires the mounting bolts to be torqued to 50 foot-pounds plus an additional 90 degrees. These torque specifications are vital to ensure the proper fitment of the viscous damper to your engine crankshaft.

What is Torsional Vibration and How Does the Fluidampr 870211 control this destructive force?

Each time the air/fuel mixture inside a cylinder is ignited, the combustion charge that occurs creates a torque spike that is applied to the crankshaft through the piston and rod. This torque spike is so severe that it not only turns the crankshaft, it twists the crankshaft ahead of its regular rotation, and then the crankshaft rebounds. This twisting action is known as torsional vibration. When these torque spikes and forces get into phase with the natural frequency, critical torsional harmonic vibrations occur and can be severely destructive to the bearings and the crankshaft. Fluidampr High Performance Diesel Dampers are designed to control those destructive vibrations.

Fluidampr 870211 Harmonic Damper is designed to control those destructive vibrations in the 6.0L Powerstroke diesel engine at all engine speeds and power output levels.

NOTE: This Ford Powerstroke Fluidampr Harmonic Balancer is for 2003 to 2009 Ford 6.0L Powerstroke with Dual Alternators.

The Fluidampr 870211 High Performance Diesel Damper is MADE IN THE USA!

  • Engine: 6.0L Powerstroke
  • Item Number: Fluidamr 870211
  • Make: Ford
  • Model: F350 | F450 | F550
  • Year: 2003 | 2004 | 2005 | 2006 | 2007 | 2008 | 2009
  • Manufacturer Part No: 870211
  • Product Application: 2003 to 2009 Ford 6.0L Powerstroke Engines with Dual Alternators
  • Height: 8
  • Width: 16
  • Brand: Fluidampr
  • FAQ: Why should I purchase a fluidampr viscous damper for my engine? The Viscous Performance Diesel Damper for 6.0L Powerstroke Diesel Engine provides control of the destructive torsional vibration on a stock or modified engine. The torsional vibrations present a higher risk for damage, so a viscous damper is an absolute must on these motors. Only a Fluidamper viscous damper protects the engine from destructive crankshaft torsional vibration.
  • Part Number: 870211
  • Manufacturer: Fluidampr
  • Product Note: Only a High-Performance viscous damper can effectively control the destructive torsional vibrations that occur at all engine RPMs and Power output levels. Install a Fuildampr crankshaft damper to ensure a long trouble-free engine life with greater power out put levels.

The Original Fluidampr Performance Diesel Installation

Step 1 – Tools & Procedures

• Proper key if required

• Anti-seize compound

• Removal & installation tool if required (Damage from improper installation will void your warranty)

• Do not use hammers/pry bars or heat to install or remove Fluidampr. (This will void your warranty and may cause engine damage)

• Honing or machining Fluidampr bore is not recommended (on applicable applications). A diametrical press fit (on press fit only dampers) of .0005” - .0015” is recommended for proper damper function. Using a micrometer, make sure to measure the crank snout and inner bore of Fluidampr to assure a proper fit.

• Sufficient torque wrench (see torque specs on page 2), fan removal tools, flywheel holding tool (if required).

CAUTION: For high horsepower applications we recommend the following:

Engine Engine Power/RPM Recommended Kit Part #

Cummins 5.9L 6.7L 3500+ RPM Fluidampr Drill Pin Kit 300002

Cummins 5.9L 6.7L Above 700HP/1250 ft⋅lb Fluidampr Full Power Kit 300008

Fluidampr Drill Pin Kit 300002

Cummins 5.9L 6.7L Under 700HP/1250 ft⋅lb Fluidampr High Strength

Bolt Kit 300007

1989-2002 Cummins Under 700HP/1250 ft⋅lb Fluidampr High Strength

5.9L Fluidampr w/.350” Bolt Kit 300009

Flange Thickness*

Duramax 6.6L 500 HP & Above Fluidamper High Strength

Bolt Kit 300010

Fluidampr recommends 750+ HP applications to recheck bolt torque after every run/pull

*If you need assistance determining which flange type you have, please contact Fluidampr tech Support.

Step 2 – Balancing - Internally and Externally Balanced Engines

REPLACING THE DAMPER

Fluidampr counterweights for external balanced engines have been designed to OEM specifications. If the damper being replaced has never been altered, Fluidampr can be installed with no additional balancing. (see page 2 for whether your Fluidampr is internally or externally balanced)

BALANCING OR MATCH BALANCING

o Each Fluidampr component is precision balanced during manufacturing. NO additional balancing is required.

o DO NOT ATTEMPT TO BALANCE THE CRANKSHAFT WITH FLUIDAMPR INSTALLED. The inertia ring inside a Fluidampr is balanced to a close tolerance at the factory. It rotates inside the damper.

o DO NOT DRILL FLUIDAMPR – The inertia ring and silicone fluid are in a hermetically sealed housing. Drilling may cause the damper to leak and lead to damper failure, voiding the warranty.

o If balancing the crankshaft is required, install the stock damper while balancing.

Step 3 – Removal

• Remove fan and shroud as per manufacturer’s instructions, draw sketch of belt routing if required and remove the accessory drive belt.

• Dodge Cummins 5.9L (1992 to 1998). BEFORE REMOVING THE STOCK DAMPER, rotate the engine so that the magnetic pick up is not on one of the notches in the outside diameter of the stock damper. If you do not have access to the gap spec, use a feeler gage to measure and record the gap between the magnetic pick up and the stock damper.

• Remove the stock damper per factory/service manual instructions.

Step 4 – Fluidampr Installation

o On engines that the damper slides or presses onto the crankshaft, carefully remove burrs, scratches, or nicks on the crank snout by filing or polishing the snout so that it is smooth and free of surface irregularities. Remove any sharp keyway corners. The key should fit snugly in the keyway on the crank. A heavy press fit creates high stress on the slot and should be avoided. Replace or modify the key if it is too tight or too loose. For bolt-on dampers, clean crankshaft threads, crankshaft mating surface and center pilot thoroughly before installation.

o Cummins installation notes:

• Fluidampr P/N 920301 includes tone wheel. Remove OEM tone wheel prior to Fluidampr installation.

• Fluidampr P/N 920301/920321/980301 – Install damper w/ the smaller of the (2) pin holes on the crankshaft pin. Check crankshaft thread depth to ensure proper bolt length prior to installation.

• Thread bolts into crankshaft fully with washer installed. Space between washer and crankshaft should be less than 0.495” (Fluidampr flange thickness with integrated tone wheel). If the length is over 0.495”, contact Fluidampr Tech Service. Minimum thread engagement = .750”

o Coat crankshaft snout and damper bore with anti-seize compound or moly grease to prevent galling during installation.

o Fluidampr P/N 760131 comes with a hardened crankshaft washer with clearance for the GM 3.200” bolt circle pattern, this replaces the factory crankshaft bolt washer.

o For Ford Power Stroke 6.0L: The belt must be routed between the Fluidampr and the water pump pulley before the Fluidampr is installed.

o Install the Fluidampr and torque the bolt or bolts properly as per the original manufacturers’ torque or torque to yield requirements. Consult a dealer to determine if your application is torque to yield, see below chart for torque specs.

o Fluidampr recommends that crank bolt(s) always be replaced with new OEM or Fluidampr bolt kits.

o Install the accessory drive belt, fan and shroud as per manufacturer’s instructions. Re-torque crankshaft bolt(s) after engine warm-up cycle.

Part# Balance Engine Fitment Years OEM Bolt Torque*

720211 External Ford 7.3L 1999 – 2003 212 Ft-Lbs.

720221 External Ford 7.3L 1994 – 1997 212 Ft-Lbs.

(See #4NFJ for fan spacer installation instructions)

870201 External Ford 6.0L 2003 – 2007 50 Ft-Lbs. plus an additional 90 degrees*

870211 External Ford 6.0L 2003 – 2007 50 Ft-Lbs. plus an additional 90 degrees*

800211 External Ford 6.4L 2008 – 2010 50 Ft-Lbs. plus an additional 90 degrees*

800221 External Ford 6.7L 2011 – Present 22 Ft-Lbs. plus an additional 90 degrees*

800141 External GM Hummer 6.2L/6.5L 1994 – 2000 See Owner’s Manual

800191 External GM 6.2L/6.5L 1982 – 1993 See Owner’s Manual (Must use included spacer)

830111 External Duramax 6.6L LBZ/LMM 2006 – 2010 74 Ft-Lbs. plus an additional 105 degrees*

830121 External Duramax 6.6L LML/LGH 2010.5 – 2016 74 Ft-Lbs. plus an additional 90 degrees*

890101 External Duramax 6.6L LLY/LB7 2001 – 2005 74 Ft-Lbs. plus an additional 105 degrees*

760131 Internal Duramax 6.6L 2001 – Present 74 Ft-Lbs. plus an additional 105 degrees*(P/N 760131 is a press fit onto the internally balanced crankshaft, comes w/ 2 keyways 5mm & 1/4")

920301 Internal Dodge Cummins 5.9L 2003 – 2009 92 Ft-Lbs.

920321 Internal Dodge Cummins 6.7L 2007.5 – Present 92 Ft-Lbs.

960301 Internal Dodge Cummins 5.9L 1998.5 – 2002 92 Ft-Lbs.

960311 Internal Dodge Cummins 5.9L 1989 – 1998 92 Ft-Lbs.

(See #4NFH for sensor relocation kit installation instructions)

960341 Internal Dodge Cummins 5.9L/6.7L Competition Series 92 Ft-Lbs.

980301 Internal Dodge Cummins 5.9L/6.7L Competition Series 92 Ft-Lbs.

WARNING: FAILURE TO USE PROPERLY TORQUED BOLTS WILL VOID WARRANTY AND COULD RESULT IN DAMPER, KEY, OR CRANK DAMAGE. ONLY USE THESE TORQUE VALUES WHEN INSTALLING DAMPER WITH OEM BOLTS. *BOLTS ARE TORQUE TO YIELD AND NEW BOLTS MUST BE USED EVERYTIME
