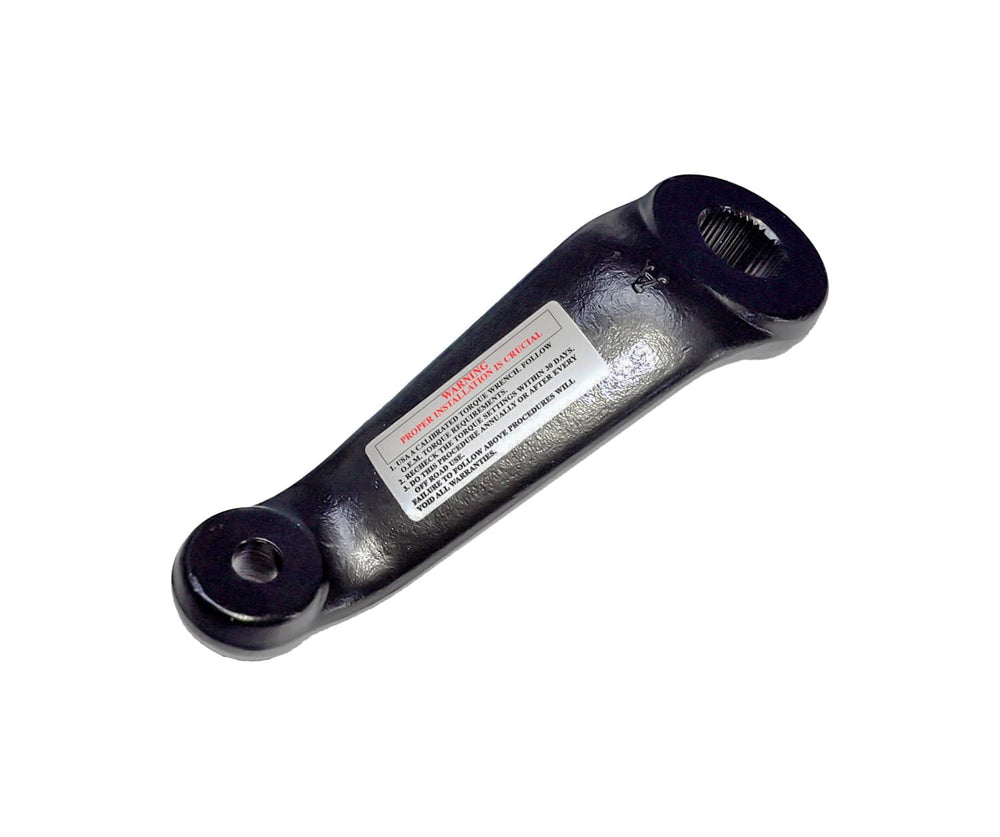

Carli Suspension 2003-2024 Dodge Ram Drop Pitman Arm

Carli Dodge Ram Drop Pitman Arm For Six Bolt Steering Boxes

These Dodge Ram drop pitman arm applications:

• 2003 to 2008 Dodge Ram 2500 Four Wheel Drive trucks
• 2003 to 2008 Dodge Ram 3500 Four Wheel Drive trucks
• 2009 to 2024 Dodge Ram 2500 Four Wheel Drive trucks
• 2009 to 2024 Dodge Ram 3500 Four Wheel Drive trucks

These Dodge Ram drop pitman arms are designed for use on the 2003 to 2008 Dodge Ram 2500 and 3500 4X4 trucks that have upgraded to the new six bolt steering box with the larger diameter sector shaft. The Drop Pitman arm is one of your truck's steering components. The Dodge Ram Drop Pitman Arm is used as a linkage to connect to the steering box. The Dodge Ram drop pitman arm converts the angular motion of the steering box sector shaft into the linear motion needed to control the front wheels through the steering linkage. There are multiple variants of steering boxes used in the Dodge Ram trucks, so please make sure you have ordered the correct part for your vehicle.

These Dodge Ram drop pitman arms are designed for use on the 2003 to 2024 Dodge Ram 2500 and 3500 4X4 trucks with the upgraded steering boxes:

• Increased ride heights of four to six inches.
• Trucks using Mopar's newest gearbox, the 68170214AA
• Drop Pitman Arms work with the 41MM sector shaft.

This Drop Pitman Arm is available to work with the following sizes to meet these increased ride height of your 2003 to 2024 Dodge Ram truck:

• Drop Pitman Arm with Increased Ride heights of 4 inches
• Drop Pitman Arm with Increased Ride heights of 5 inches
• Drop Pitman Arm with Increased Ride heights of 6 inches

Dodge Ram Drop Pitman Arm features:

• Heavy Duty forged drop pitman arm.
• The sector shaft splines are precision broached and then induction hardened.
• The drop pitman arm features a taper incorporating the New T-style steering assembly.
• Lowers the drag link angle,
• Improves the steering geometry for full unrestricted movement.
• Corrects the condition known as bump steer when your truck's ride height has been modified.
• Made from Forged Steel for strength and reliability

2003 to 2024Dodge Ram Drop Pitman Arm benefits:

• Direct bolt-on replacement for the factory pitman arm on vehicles lifted above four inches.
• Drop Pitman Arm will help eliminate bump steer on lifted vehicles.
• It will give improve handling on your vehicle.
• •Improved Drag Link Operating Angles
• Help prevent uneven tire wear on the front end of your Dodge Ram truck.

NOTE: If you have any questions about which pitman arm you need, please call us prior to your order.  The installation of a drop pitman arms requires the proper adjustment of your track bar to ensure the appropriate alignment of the front axle. It is highly recommended that you have an adjustable track bar for adequate steering relationships. The installation of a Drop Pitman Arm should be used in conjunction with a Dodge Ram Adjustable Track Bar to ensure the correct alignment of the front axle. KLM Performance recommends that you determine the correct part required for your application.
