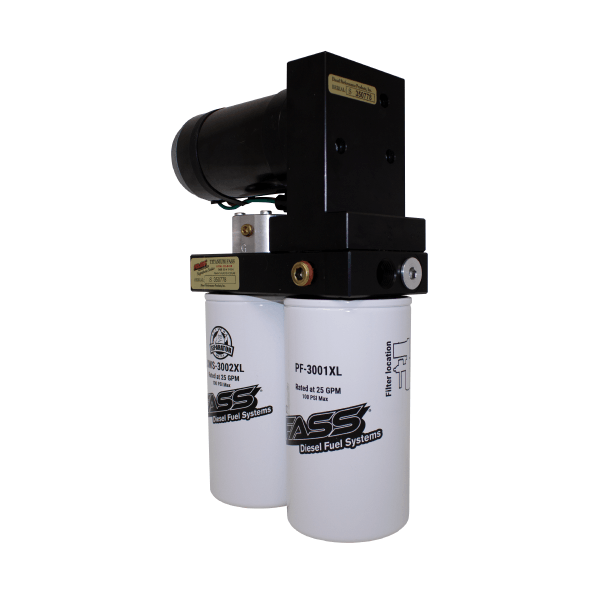

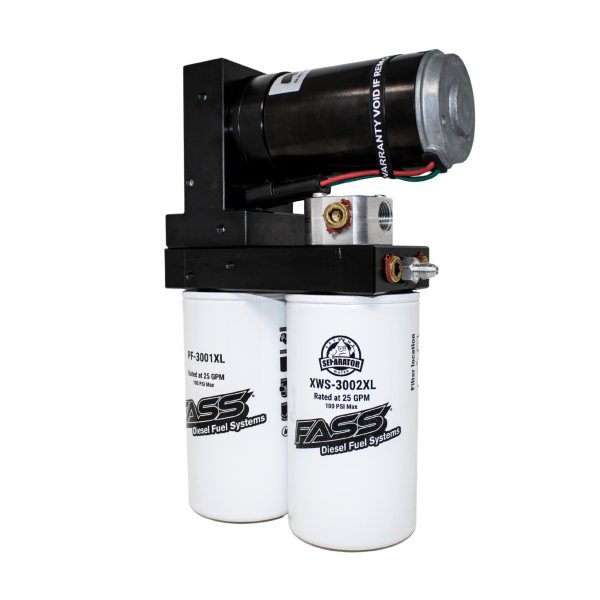

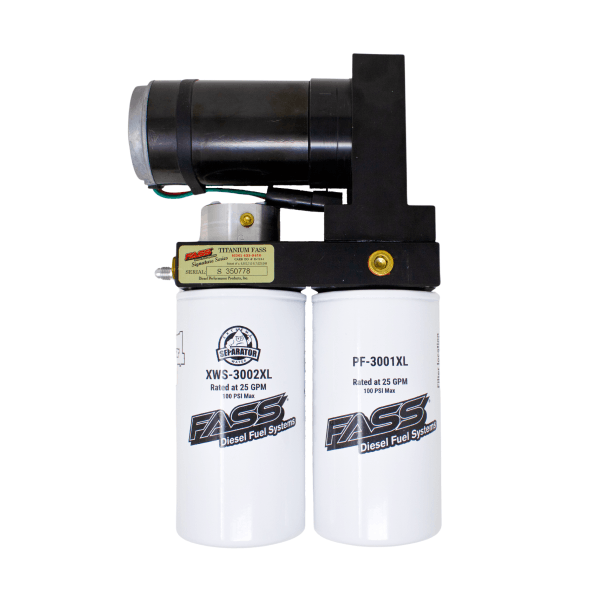

FASS IND290G Industrial Series 290GPH Diesel Fuel Lift Pump

FASS Fuel Systems Industrial Series Class Eight Diesel Lift Pump 290 GPH IND290G

The FASS IND290G Class Eight Series Truck Lift Pump is designed for the following diesel engine applications:

• CAT 3406e
• CAT C15 ACERT
• CAT C16
• Cummins M11
• Cummins N14
• Cummins ISX
• Cummins X15
• Cummins Signature Series
• John Deere 4430 6.6L (404 ci)
• Mercedes (MBE-4000)
• Paccar MX 13
• Paccar PX 7
• Paccar PX 9
• Volvo (VED)

FASS Fuel Systems engineered the FASS Industrial Series diesel fuel lift pump to be the top-performing, longest-lasting, and most reliable aftermarket filtration system in the diesel industry. Rated at 290 gallons per hour and backed by the FASS Five-year lifetime warranty, the Industrial Series lift pump can support a semi-diesel engine with enough fuel with stock fueling system upgrades. An Industrial Series lift pump also offers advanced filtration benefits that will help protect the injection systems, effectively extending the life of your injectors. These Benefits include an improved filtration rating of 3 Microns, a built-in water separation filter, and FASS Fuel Systems patented air/vapor removal process.

This Industrial Series IND290G lift pump provides the following benefits:

• Premium filtration of your diesel fuel.
• A purified fuel supply rate of 290 gallons per hour.
• Continuous fuel pressure of Sixteen to Eighteen PSI.
• Backed by a Manufacturer Limited Lifetime Warranty.
• This Industrial Series fuel system can support your diesel engine with enough fuel for trucks built with up Six Hundred Horsepower to Nine Hundred Horsepower.
• An Industrial Series fuel system also offers Two integrated diesel fuel heater ports that are machined into the fuel pump body. These ports provide you with increased performance when dealing with Cold Starts.
• Advanced diesel fuel filtration provides benefits that will help protect your entire fuel injection system throughout the life of your engine.
• This Fuel Air Separation System provides the patented air and vapor removal process.
• The Industrial Series provides an improved diesel fuel filtration level down to Two Microns.
• Fast and easy diesel fuel filter changes take only minutes to perform.
• The installation of a FASS Industrial Series lift pump will provide increased power levels, improved fuel economy, a smoother running engine as well as increased combustion efficiency.
• The new and improved FASS Industrial Series fuel pumps have a Black Filter body.

The Industrial Series diesel fuel pumps are the superior fuel pump and filtration system in the diesel industry. This is because here at FASS Fuel Systems, we focus on perfecting our pumps and how they are engineered, taking the extra steps that our competitors ignore while they rush to get the product out the door. By doing this, we have less than a 2% failure rating with our motor and a design that implements unique design features you can only get with FASS Fuel Systems.

• FASS Silencing Technology (FST) was developed by the engineering team here at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation diesel lift pumps. By using radius cuts, tighter tolerances on all gears, and a high quality military Spec’d Coating over the aluminum base, FASS Fuel Systems was able to develop the quietest fuel air separation system on the market.
• The FASS Performance Radius Cuts (PRC) are an advanced machining technique that improves fuel flow through the diesel lift pump by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and also prevents stagnate fuel pockets from forming within the corner of a 90-degree bend. FASS Fuel Systems Industrial Series Diesel Fuel Pumps are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts. Lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
•  The FASS Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine and returning the fuel that is not yet needed back to the tank after it has been passed through the filtration process, removing dirt, air, vapor, and water. This means your fuel is being constantly moved and cleaned, guaranteeing that your diesel truck always has the freshest and cleanest fuel possible.
• All Of The FASS Industrial Series Fuel Air Separation Systems feature the CFP - Continuous Fuel Polishing technology. THE CFP feature is used to continually “polish” your fuel by repeatedly circulating the fuel within the Extreme Water Separator prior to the fuel being sent to the fuel injection system. This process ensures that your diesel engine is supplied with the purest diesel fuel possible for optimum engine performance.

FASS Industrial Series 290G 290 Gallon Per Hour Pump Features:

Preset 18 PSI Fuel Pressure 290 Gallons Per Hour Flow Rating Removes Water, Air, and Debris From Diesel Fuel Two Micron Filtration Rating Protects and Extends The Life Of Your Fuel Injectors Improved Cold Weather Starts Decreases Carbon Monoxide and Carbon Dioxide Emissions ½ Inch Fuel Line Ports

Fuel Mileage Improvement Improved Fuel Volume Delivery Smoother Engine Idle Optional Electric Heater Ports Optional Fuel Pressure Gauge Port Limited Five-Year Warranty 30,000 Mile Filter Life Expectancy Quietest Motor On The Market



NOTE: A majority of modified Class 8 semi-trucks will operate perfectly with the FASS IND290G model. However, if you have increased the power output level of your Diesel engine, we recommend upgrading to the higher flow rate provided by the FASS IND290G Other specific fuel rates are also available. Contact us for more information.

NOTE: Class 8 FASS systems all require fuel line kits for installation. Please visit our Fuel Line Kits page for fitment options. The FASS FLK-S06 Double Vent Return Fuel Line makes the installation on your Class Eight Fuel Pump with dual fuel tanks very straightforward. The FASS Industrial Series 290 GPH lift pump, does not include fuel lines or fittings due to the many different possible applications and fuel tank configurations possible. The Class 8 Fuel Line Kits need to be purchased separately. Class 8 FASS systems all require separate fuel line kits for installation.

The optional FASS SFB-1001 Semi Frame Bolt-On Installation Bracket for the Class 8 Semi Trucks

The installation of a FASS fuel system on your Class 8 truck can now be so much easier and far faster than before. With the purchase of the FASS SFB-1001 frame mounting bracket, this beneficial upgrade of a FASS Fuel System is much faster. The FASS Semi Frame Bracket Mounting Kit is just one of the FASS Fuel System Accessories currently available. Having the proper diesel fuel filtration, water separation, consistent fuel delivery, and entrained air removal on your Class 8 truck will increase horsepower, mileage, and reliability.  We have heard complaints from our customers regarding the FASS systems installation times, but since this frame rail and mounting brackets introduction, these issues have stopped. FASS has released its Semi Frame Bracket that reduces installation time and eliminates any and or all frame rail drilling. The new bolt-on mounting bracket design fits securely around the frame and adjusts to fit frame heights from 10" to 11 3/4". This bolt-on bracket installation design fits securely on the frame rail and allows a simple adjustment to fit the frame.

NOTE: Class 8 semi-trucks with any of these listed engines the Please Contact KLM Performance if you need further information regarding the correct FASS lift pump for your application.

• by KLM Performance

• Engine : CAT 3406e | CAT C15 ACERT | CAT C16 | Cummins M11 | Cummins Cummins N14 | Cummins ISX | Cummins X15 | Cummins Signature Series | John Deere 4430 6.6L | Mercedes MBE-4000 | Paccar MX 13 | Paccar PX 7 | Paccar PX 9 |
  Volvo VED
• Flow Rate: 290 Gallons Per Hour
• Fuel Type: Diesel Fuel
• Fuel Delivery Pressure: Sixteen to Eighteen PSI.
• Item Number: IND290G
• Power Level: Stock to 900 Horespower

• Make: Over Road Class 8 Trucks With a CAT 3406e | CAT C15 ACERT | CAT C16 | Cummins M11 | Cummins Cummins N14 | Cummins ISX | Cummins X15 | Cummins Signature Series | John Deere 4430 6.6L | Mercedes MBE-4000 | Paccar MX 13 | Paccar PX 7 | Paccar PX 9 | Volvo VED
• Model: Big Rig Class 8
• Year:

• Manufacturer Part No: FASS IND290G
• Product Application: Large Displacement Diesel Engines Requiring Purified Diesel Fuel With Six Hundred To Nine Hundred Horsepower.
• Height: 24
• Width : 18
• Brand: FASS
• FAQ: Why should you install a FASS Industrial Series fuel pump on your engine?
  Any Class 8 or over-the-road trucks can benefit from a FASS Industrial Series fuel pump installation. The larger motor used in all FASS Industrial Series diesel pumps incorporates a larger motor to provide your engine with the required fuel and optimum fuel pressure. The FASS Industrial Series fuel pump also provides the best diesel fuel filtration possible to protect your entire fuel injection system from harmful contaminants such as dirt, water, and even air. Installing a FASS Industrial Series fuel pump provides increased lubricity, improves fuel mileage, decreases injector wear, and offers a smoother idle over any stock or aftermarket competitor.
• Part Number: FASS IND290G

• Manufacturer: FASS Fuel Systems
• Product Note: The FASS Industrial Series fuel system provides superior diesel fuel filtration at a Two Micron level, removes entrained air and vapor, and helps improve your fuel mileage by 0.6 to 0.8, improving your overall cost of ownership.
