FASS TS D11 110G Titanium Signature Series 2014-2018 Dodge Ram 1500 3.0L EcoDiesel

Save 17%
FASS Fuel Systems


FASS Fuel Systems TSD11140F110G Titanium Signature Series Lift Pump For 2014 to 2018 Ram 1500 EcoDiesel

No reviews

Sale price$899.00 Regular price$1,078.80

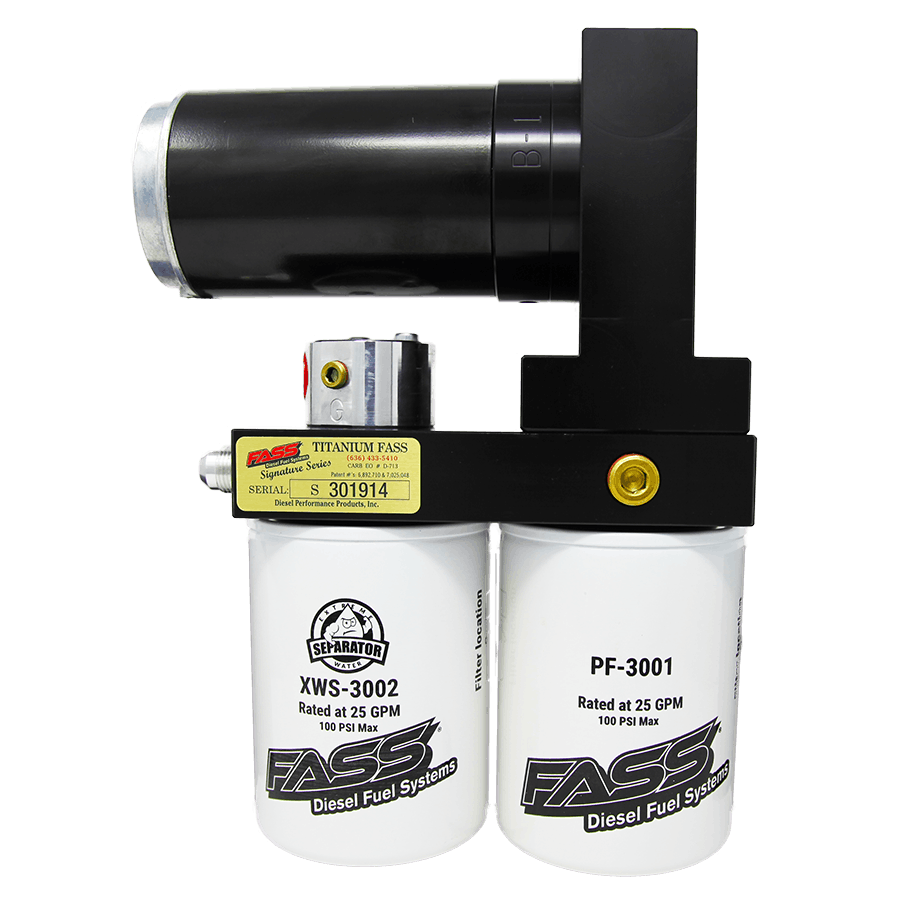

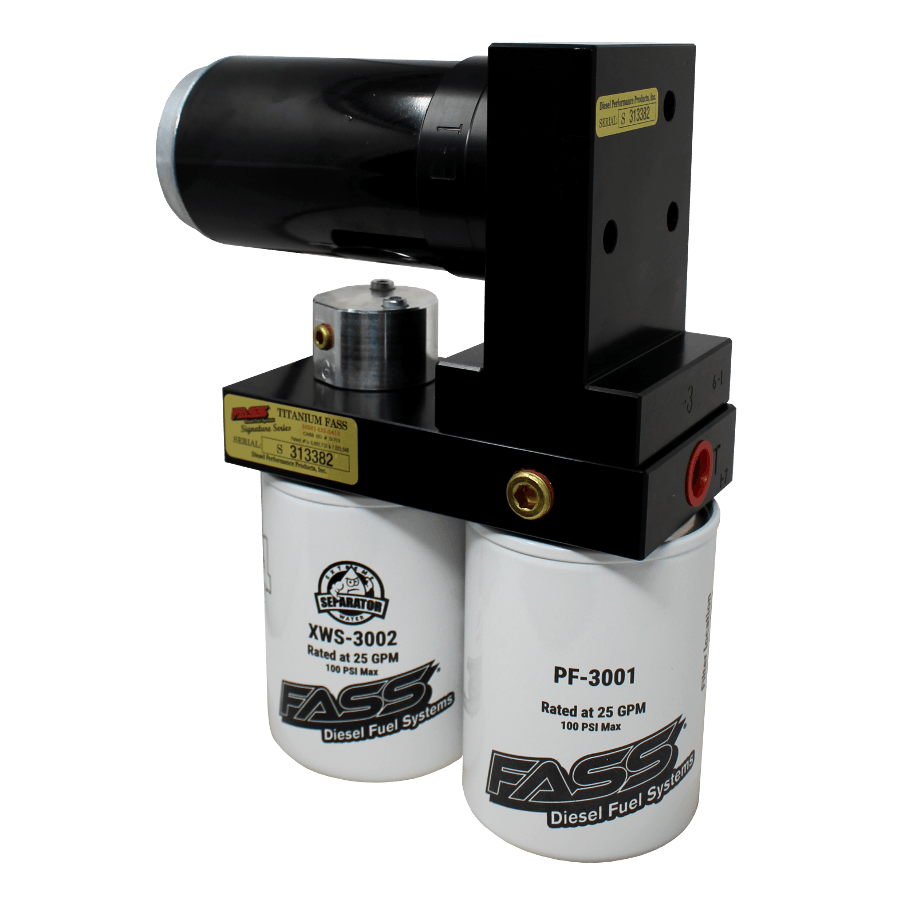

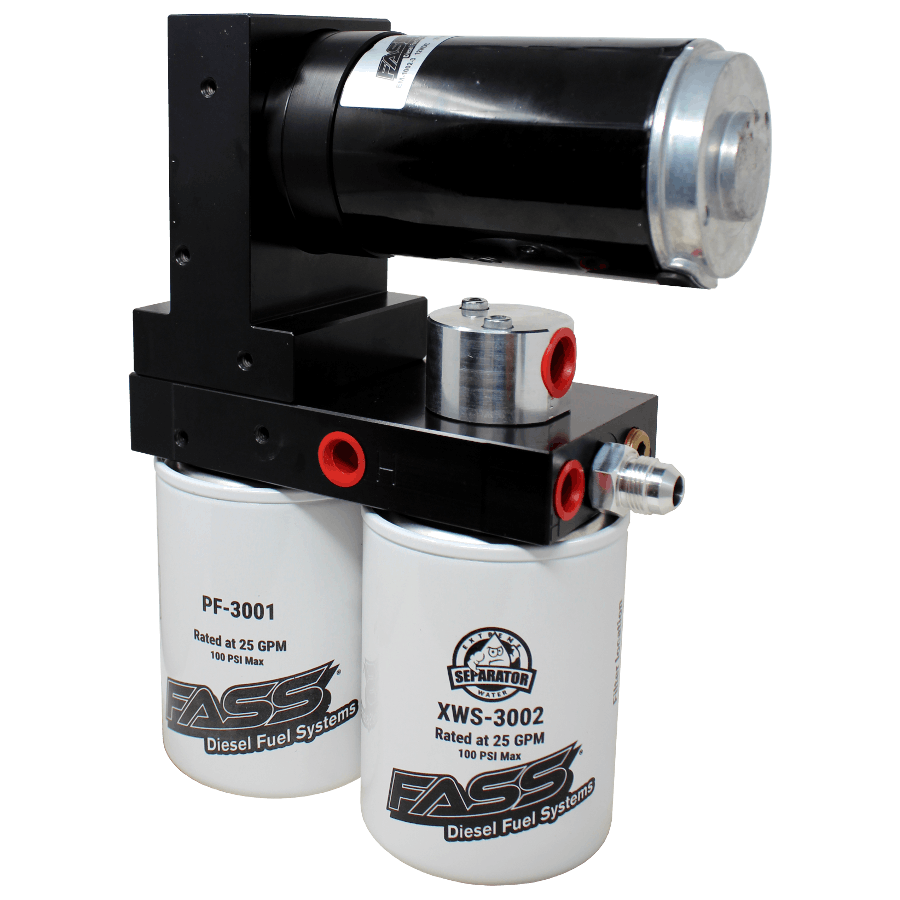

FASS Fuel Systems TS D11 110G Titanium Signature Series Diesel Lift Pump

The FASS Titanium Signature Series TS D11 110G High Performance Diesel Fuel Lift Pump is specifically designed for the 2014 to 2018 Dodge Ram 1500 series pickups, with the 3.0L diesel engine producing less than 700 Horsepower.

FASS TS D11 110G Titanium Signature Series lift pump is designed for 2014-2018 Dodge Ram 1500 3.0L EcoDiesel engines. It features an advanced filtration rating of 2 microns for superior protection of your injection systems and provides a built-in water separation filter and patented air/vapor removal process.

This FASS TSD11140F110G Titanium Signature Series Ram 1500 Lift Pump supersedes the prior part number:

  • FASS Fuel Systems TS D11 110G

The FASS Titanium Signature Series TS D11 110G Diesel Fuel Lift Pump Applications:

  • 2014 Ram 1500 3.0L Diesel 2987CC 182Cu. In. V6 DIESEL DOHC Turbocharged
  • 2015 Ram 1500 3.0L Diesel 2987CC 182Cu. In. V6 DIESEL DOHC Turbocharged
  • 2016 Ram 1500 3.0L Diesel 2987CC 182Cu. In. V6 DIESEL DOHC Turbocharged
  • 2017 Ram 1500 3.0L Diesel 2987CC 182Cu. In. V6 DIESEL DOHC Turbocharged
  • 2018 Ram 1500 3.0L Diesel 2987CC 182Cu. In. V6 DIESEL DOHC Turbocharged

2014-2018 Dodge Ram 1500 3.0L EcoDiesel Titanium Signature Series 110 GPH TS D11 110G

The Titanium Signature Series is the latest version of a high performance diesel fuel lift pump incorporating the latest features and fuel pump improvements. This new Titanium Signature Series The T D11 110G diesel fuel system was engineered by FASS Fuel Systems as the top-performing, longest-lasting, and most reliable aftermarket diesel fuel filtration system available.

This Titanium Signature Series lift pump for 3.0L VM Motori EcoDiesel engines provides the following benefits:

  • Premium filtration of your diesel fuel.
  • A fuel supply rate of 110 gallons per hour.
  • Continuous fuel pressure of Seventy to Seventy-Five PSI.
  • Backed by a manufacturer's Limited Lifetime Warranty.
  • This Titanium Signature Series fuel system can support your Dodge Ram 3.0L EcoDiesel engine with enough fuel for up to Seven Hundred Horsepower.
  • A Titanium Signature Series fuel system also offers Two integrated diesel fuel heater ports that are machined into the fuel pump body. These ports provide you with increased performance when dealing with Cold Starts.
  • The advanced diesel fuel filtration provides benefits that will help protect your entire fuel injection system throughout the life of your engine.
  • This Fuel Air Separation System provides the patented air and vapor removal process.
  • The Titanium Signature Series provides an improved diesel fuel filtration level down to Two Microns.
  • This Dodge Ram Titanium Signature Series kit includes the Bulkhead and Suction Tube Kit.
  • Reduced lift pump installation times are now achievable with the 6061 T-6 Billet Aluminum Machined Bulkhead fittings. This updated fitting functions as both a suction and a return tube.
  • Fast and easy diesel fuel filter changes take only minutes to perform.
  • Installing a FASS Titanium Signature Series lift pump will provide increased power levels, fuel economy, smoother running engine, and combustion efficiency.
  • The new and improved FASS Titanium Signature Series fuel pumps have a Black Filter body.
  • This Titanium Signature Series Fuel Pump is built with the High-Pressure EM-1002 electric motor to produce up to Seventy-Five PSI.

These Advanced Features Are Incorporated Into Every Titanium Signature Series:

  • FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
  • Performance Radius Cuts (PRC) are an advanced machining technique that improves fuel flow through the FASS System by creating smooth-flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor into the fuel and eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System incorporating these exclusive Performance Radius Cuts. Lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions, and reintroduce air back into your fuel.
  • Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then return the fuel that’s not yet needed back to the tank after it has been passed through the filtration process, removing dirt, air, vapor, and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR and the optional FASS Fuel Heater options will help ensure “EXTREME” cold weather operations!
  • Bolt-On Bracket Mounts  This New Mounting Bracket provides a straightforward FASS Lift Pump installation with the improved bolt-on brackets. With the incorporation of a proven Ford Super Duty factory bed bolt. Mounting your Titanium Series lift pump takes only minutes, and all brackets are made from machined steel for superior support and strength.

The FASS Titanium Signature Series Fuel Air Separation Systems for the Dodge Ram with the VM Motori 3.0L EcoDiesel engines are MADE IN THE USA!

2014 - 2018 Cummins 110 GPH Fuel System Features:

  • New Whisper Technology
  • New Bolt On Bracket Installation
  • Preset 70 to 75 PSI Fuel Pressure
  • 110 Gallons Per Hour Flow Rating
  • Removes Water, Air, and Debris From Diesel Fuel
  • Two Micron Filtration Rating
  • Protects and Extends The Life Of Your Injectors
  • Improved Cold Weather Starts
  • Decreases both Carbon Monoxide and Carbon Dioxide Emissions
  • ½ Inch Fuel Lines and Ports
  • Bulkhead Fitting Suction Tube and Return
  • Fuel Mileage Improvement
  • Improved Fuel Volume Delivery
  • Smoother Engine Idle
  • Optional Electric Heater Ports
  • Optional Fuel Pressure Gauge Port
  • Limited Lifetime Warranty
  • 30,000 Mile Filter Life Expectancy
  • Quietest Motor On The Market
  • by KLM Performance
  • Engine : 3.0L VM Motori EcoDiesel
  • Flow Rate: 110 Gallons Per Hour
  • Fuel Pressure: 70 to 75 PSI
  • Power Level: Stock To Seven Hundred Horse Power
  • Item Number :
  • Make : Dodge | Ram
  • Model: 1500
  • Year :  2014 | 2015 | 2016 | 2017 | 2018
  • Manufacturer Part No: FASS TS D11 110G
  • Product Application: 2014 to 2018 Ram 1500 Series pickups with the 3.0L EcoDiesel engine.
  • Height :
  • Width :
  • Brand: FASS
  • FAQ: Why must I install an Aftermarket Lift Pump on my VM Motori 3.0L Ecodiesel engine? If you want to increase the performance or power level of your EcoDiesel diesel engine, you will need to ensure you obtain the proper flow of purified diesel fuel. Today, adding aftermarket performance parts to obtain more power is simple. One of the primary principles to obtain increased power is the ability to provide more fuel at the proper pressure and delivery rates. This is where the Titanium Signature Series Lift Pump comes in. The diesel engine holds the top spot for the most efficient internal combustion over all other engine types. Adding a new diesel fuel pump to your diesel engine can vastly increase its performance beyond factory limits.
  • Part Number: FASS TS D11 110G
  • Manufacturer: FASS Fuel Systems
  • Product Note: This FASS TS D11 110G Titanium Signature Series Diesel Fuel Lift Pump is for the 2014 to 2018 Dodge Ram pickups with stock-powered engines up to Seven Hundred Horsepower.
