Fleetguard FS19763 Water Separator Filter

Fleetguard FS19763 Elemax Seven Micron Fuel Water Separator Cartridge Filter for the DAVCO Fuel Pro 382 Processor.

Fleetguard FS19763 Fuel/Water Separator EleMax™ cartridge filter protects vital fuel injection system components. Fleetguard® FS19763 plus size EleMax™ fuel filter protects your entire fuel injection system. This Elemax filter cartridge is designed for heavy duty diesel engines with flow rates up to 180 GPH gallon per hour. The filter effectively removes 95% of both the entrained and emulsified water from your diesel fuel. This Fleetguard fuel water separator filter is for engines utilizing the Davco Fuel Pro 382 processor as a full-function combination of diesel fuel filtration and water separation, saving you time, money, and unnecessary downtime.

The Fleetguard FS19763 Elemax Diesel Filter Cartridge Element benefits:

• It has a metal housing, making this Fuel Water Separator an environmentally friendly filter.
• Approved for use with Ultra Low Sulfur Diesel compatible.

• Removes entrained water and emulsified water.
• Filters to a 7 Micron level.
• This Elemax filter provides High-efficiency and high-capacity diesel fuel filtration.
• The Elemax filters utilize Three layers of StrataPore™ filter media with incremental micron-sized StrataPore™ filter media to increase the filter contamination holding capacity.
• The Davco fuel processors with the EleMax filter are designed for the suction side of the fuel system to provide Superior Water Separation.
• ensuring better water separation
  The patented Fleetguard StrataPore™ is unlike cellulose filtration media that, over time, reduces water separation efficiency.
• The Emulsified water removed by this FS19763 filter cartridge collects at the bottom of the fuel processor body.
• The DAVCO fuel processor provides the filter Micron Rating Identifies the micron rating of the EleMax filter

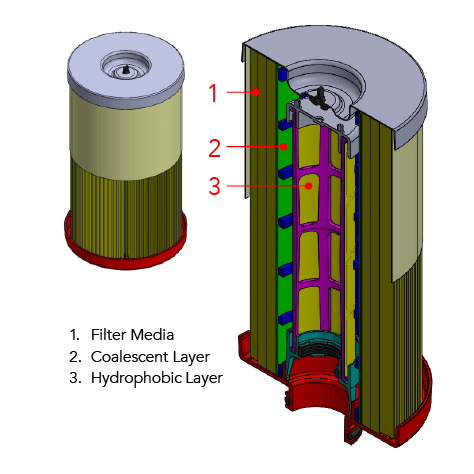

• StrataPore ™ Media: Three layers of patented laminated melt-blown media inherently strips emulsified water from the fuel and increases dirt-holding capacity


This Fleetguard FS19763 Replacement Fuel and Water Separator Filter applications:

• CAT C11
• CAT C13
• CAT C15
• Cummins ISC8.3L
• Cummins L9
• Cummins QSK19
• Cummins QSK36
• Cummins QSK50
• Cummins QSK60
• Cummins X15
• Detroit Series 60 12.7L
• Detroit Series 60 14L
• MaxxForce 11
• Mercedes MBE4000

Fleetguard FS17963 Diesel Fuel Water Separator Filter Specifications;

• Overall Height is 218.5 mm  or 8.602 inches
• The Largest Outside Diameter is 110.5 mm  or 4.35 inches
• End 1 Inside Diamter 16.76 mm or 0.66 inches
• End 2 Outside Diameter 106.93 mm or 4.21 inches

• Emulsified Water Separation  95 %
• Free Water Separation 95 %
• Efficiency Rating With TWA By SAE J 1985 98.7 %
• Water Removal Micron Rating By SAE J 1985 7 Microns

• Thread Diameter: 1.0 in
• Thread Form: Unified National
• Thread Pitch:14.0 Threads Per Inch
• Overall Height 7.039 Inches or 178.79 MM
  End 2 OD 4.21 Inches or 106.93 MM
  Most significant OD 4.21 Inches or 106.93 MM
  End 1 ID 0.66 Inches or 16.76 MM
  EMULSIFIED WATER SEPARATION 95 % (95 %)
  FREE WATER SEPARATION 95 % (95 %)
  EFFICIENCY, TWA BY SAE J 1985 98.7 % (98.7 %)
  MICRON RATING BY SAE J 1985 7 micron (7 micron)


Fleetguard Cummins Filtration FS19754 Diesel Fuel Water Separator Filter Cross References:

• Alliance ABP/N10G
• Atlas Copco 5580-0078-57
• Atlas Copco 5580007857
• Baldwin PF9814 Donaldson P550850
• Carquest 86763
• Cummins 3944901S
• DAVCO 382129
• DAVCO 382135
• Davco 102011
• Davco 102526
• Detroit Diesel 23538657
• Dressta 867011205
• Hitachi 4669642
• Keestrack 105549
• Komatsu 79738773
• Liebherr 10342453
• Luber Finer L9763FXL
• Mack 2191P550849
• Mack 5479102526
• Mack 5839FS19763
• Mtu 23538305
• NAPA 3763
• Sandvik CP002330
• TEREX 15503185
• Terex / Terex Advance 15503185
• WIX 533763
• Wix 33763

This Davco Diesel Fuel Water Separator Cartridge Filter supersedes:

• Fleetguard FS3944901S


NOTE: The Fleetguard FS19763 filter was designed for installation into the DAVCO Fuel Pro 382 processor. Please ensure that you are purchasing the correct replacement filter element for your DAVCO fuel processor prior to making a purchase.

• By KLM Performance
