Fleetguard FS20172 Fuel Water Separator Filter

Fleetguard FS20172 Cummins Filtration Fuel Filter

The Fleetguard FS20172 is a fuel water separator cartridge filter designed to remove water and other particulates, ensuring that clean fuel is delivered to your engine.
This filter is suitable for a range of vehicles and engines, particularly those from the Freightliner and International brands with various models and engine types, including the Cummins X12 and X15 engines. It’s important to ensure compatibility with your specific vehicle or engine model before purchasing.

This Fleetguard® FS20172 fuel water separator cartridge filter is listed for a wide range of heavy-duty diesel applications, including select Freightliner, International, Kenworth, Peterbilt, Volvo, and Western Star trucks. The supplied applications also include motor coaches, buses, motorhome chassis, fire apparatus, and vocational vehicles from manufacturers such as Van Hool, Motor Coach Industries, Temsa, Autocar, and Spartan.

Most listed applications use a Cummins X12 engine, with additional listings for X15, ISX12, and ISX15 engines. Model years vary by vehicle and engine, with listed applications spanning 2009 through 2025. A few entries also identify PACCAR MX-13 or PX-9 engines. Confirm the filter part number against the vehicle’s VIN and engine serial number before ordering.

Fleetguard Fuel Water Separator FS20172 Filter Cross References:

• Baldwin PF46081
• Donaldson P591299
• LUBER-FINER L5111F
• NAPA 600500
• Paccar K37-1011
• Paccar K37-1029
• WIX WF10500

Fleetguard Atmus Filtration FS20172 fuel water separator cartridge specifications:

• Fuel Type:  Diesel Fuel
• Filter Type:  Diesel Fuel Water Separator Cartridge Fuel Metal Free

• Filtration Media Type:   StrataPore Media
• Filtration Rating:  98% Removal of Emulsified Water
• Filtration Level:  10 Microns

• Largest End I.D.: 0.81 inch
• Largest O.D.:     4.16 inch
• BPV OPENING DP:   No
• Length:              7.62 inch

This is a Genuine Fleetguard FS20172 Ten Micron Fuel Water Separator that is designed for use in these applications:

• 2017 and newer Kenworth and Peterbuilt trucks powered with Cummins X12 and X15 engines.
• 2016 Plus Kenworth T660, T680, T700, T800, and W9001 with the Paccar MX-13
• 2016 Plus Peterbuilt Model 579, 587, 386, and 3841 with the Paccar MX-13
• Pierce fire trucks with the Paccar MX-13
• Kenworth T880, T680, T800 with FEPTO, and W900S1 with the Paccar MX-13
• Peterbuilt Model 579 and vocational Model 5671 with the Paccar MX-13
• DAF Truck models Euro 6 CF and XF vehicles with the Paccar MX-13

Fleetguard® Cummins Filtration FS20172 fuel water separator cartridge filter works to remove emulsified water and other particulates and ensures that clean fuel filtered to a Ten Micron level is supplied to your engine. The supply of Clean, uncontaminated fuel is key to maximum fuel system performance and longevity for modern diesel engines. Without high-quality fuel filtration and regularly scheduled service, fuel contamination can lead to costly repairs and engine downtime. A fuel cleanliness study found that more than 50% of fuel used worldwide does not meet the suggested industry cleanliness levels. Fuel injection system suppliers today require that fuel entering the fuel injection system have ISO cleanliness levels as low as 11/8/3*. Dirt and contaminant removal and effective fuel/water separation with high-quality, filtration reduces component wear and creates optimized fuel atomization and engine power.

Fleetguard FS20172 Fuel Separator Filter Applications For the 2017 and newer Cummins X12 and X15 engines.

NOTE: The use of Bio-Diesel, Vegetable Oil, and Blended Fuels can significantly reduce the life expectancy of your Fleetguard FS20172 Fuel Water Separator Filter.

We strongly recommend keeping a spare set of all your required diesel fuel Filters in your truck as this preventative move is far cheaper than calling for a tow.

What are the benefits obtained by purchasing an OEM Cummins Filtration Fleetguard part?

• Genuine Cummins Parts are backed with a manufacturer's warranty.
• Genuine Cummins Parts provide optimum engine efficiency and peak power levels you need to get the job done.
• OEM Cummins parts provide the exact fit for a straightforward installation reducing your downtime.
• Cummins parts ensure you're up and running for financial protection and peace of mind.

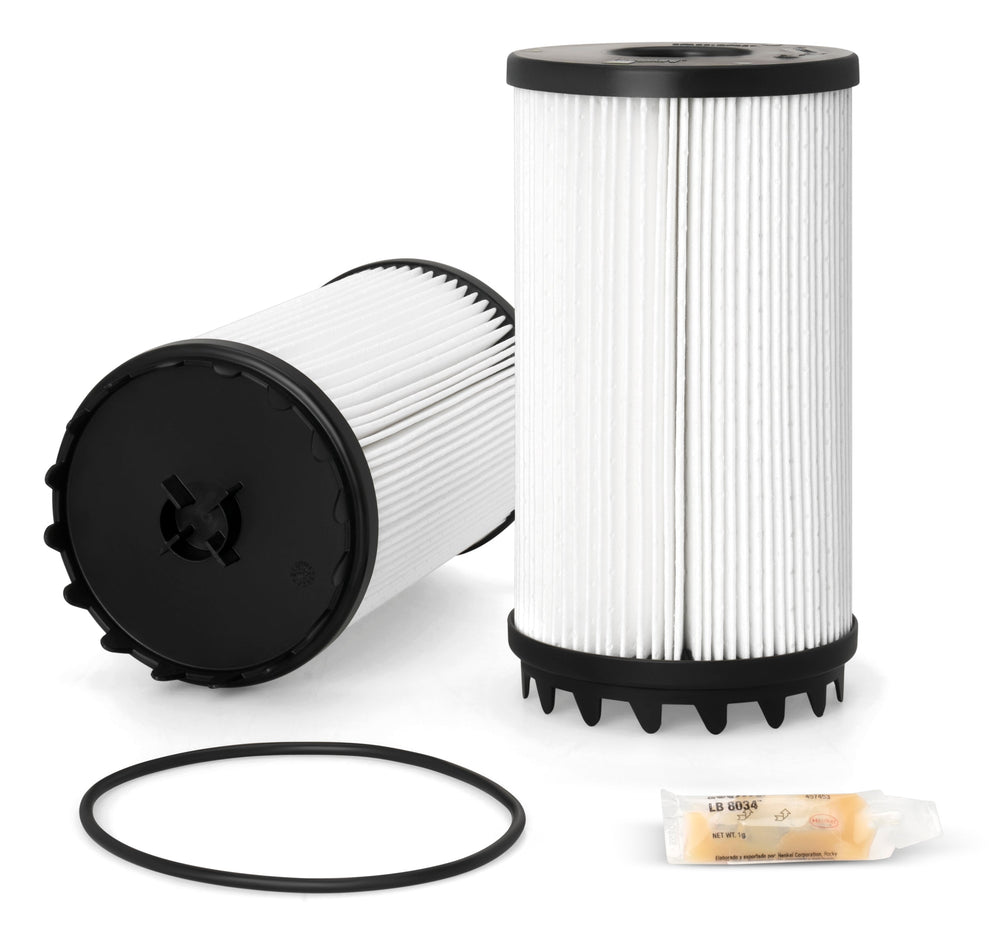

NOTE: KLM Performance offers a quantity discount on all Fleetguard Cummins Filtration products when three or more filters are purchased. This quantity discount will be reflected in your shopping cart. The image depicted shows two fuel water separator filters for product presentation purposes. This item is sold on a single unit basis.

• By KLM Performance

• Engine: Cummins X12 | Cummins X15 | Paccar MX-11 | Paccar MX-13

• Fuel Type: Diesel Fuel
• Filtration Level: Ten Micron
• Filter Type: Diesel Fuel Water Separator Cartridge Fuel

• Filtration Media Type:  StrataPore Media
• Filtration Rating:  98% Removal of Emulsified Water
• Filtration Level:  10 Microns
• Flow Rate: From 95 to 260 Gallons Per Hour
• Item Number: Fleetguard FS20172

• Make: 2017 To Current Model Year Kenworth and Peterbuilt trucks with the X12 and X15 engines.

• Model: Kenworth | Peterbuilt

• Year: 2017 | 2018 | 2019 | 2020 | 2021 | 2023 | 2023

• Manufacturer Part No: FS20172
• Product Application: 2017 Plus Kenworth and Peterbuilt trucks with the X12 and X15 engines and the 2016 Plus Paccar MX-11 and Paccar MX-13.

• Height: 4
• Width : 8
• Brand: Fleetguard
• FAQ: What is the diesel fuel filtration level offered by this Fleetguard FS20172 Filter?
• The FS20172 Fuel Water Separator is a High Efficiency 10 Micron diesel fuel water separator filter that ensures a purified supply of diesel fuel to your fuel injection system.

• How often should I drain my Diesel Fuel Water Separator Filter?
  Diesel fuel contains water so it is up to you to remove the water that is contained within the diesel fuel water separator filter. This Fleetguard FS20172 Fuel Filter is relatively small so your drain interval should occur more often than you think. Removing the water from this filter is easy and it must be done in order to avoid costly repairs to your fuel injection system. You just turn the petcock and empty the water from the collection chamber of the separator.
• Part Number: FS20172
• Manufacturer: Fleetguard Atmus Filtration Technologies

• Product Note: This Emulsified Diesel Fuel Water Separator Filter is a direct replacement for the Paccar K371011 and K371029 fuel filters.
