Fleetguard SK15959 Universal LED Air Filter Restriction Indicator
Fleetguard SK15959 Universal LED Air Filter Restriction Indicator
Fleetguard SK15959 Universal LED Air Filter Restriction Indicator
Fleetguard SK15959 Universal LED Air Filter Restriction Indicator
Fleetguard SK15959 Universal LED Air Filter Restriction Indicator
Fleetguard SK15959 Universal LED Air Filter Restriction Indicator
BRAND: Fleetguard Atmus Filtration Technologies | SKU: Fleetguard SK15959

Fleetguard SK15959 Universal LED Air Filter Restriction Indicator

$163.98 $197.90 $197.90 /
Subscription

FREE SHIPPING

IN STOCK - READY TO SHIP

This product is in stock and ready to ship immediately. No need to call—we guarantee fast and efficient shipping straight to you.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Fleetguard SK15959 Univeral Application FIT LED Air Filter Restriction Indicator


Fleetguard® SK15959 FleetguardFIT™ Filtration Intelligence Technology is a single type of sensor used in the most comprehensive filtration monitoring system available for filters, lube oil, and hydraulic systems that provide real-time status updates so maintenance can be based on real-world conditions. This kit contains LED Air Filter Restriction Indicator (AFRI) Sensor and pigtail electrical harness for integration.  The LED Air Restriction Sensor is an electro-pneumatic light-indicating sensor installed on the air intake filter housing to detect air filter conditions accurately. This Sensor is designed to replace your current 25" Threaded Mechanical Restriction Indicator.

This Fleetguard SK15959 LED sensor kit utilizes a built-in LED indicator light that provides a restriction indication as long as power is supplied to the Sensor. The Sensor offers three different colors to indicate the level of restriction in your Air Filter. The Air Filter Restriction Sensor changes colors based on filter loading restrictions.

  • A low level of air filter restriction is provided by a Green light.
  • A moderate level of air filter restriction is provided by a Yellow light
  • A Red light provides a High level " Above 25" of H2O " of air filter restriction to indicate Replacement is now required.

The Fleetguard SK15959 Air Filter Restriction Indicator or AFRI Sensor Applications:

  • This is a Universal Application Air Filter Restriction Sensor.
  • This Sensor is designed for use with an Enclosed Air Box.
  • Cummins engines that are equipped with the FleetguardFIT™ Filtration

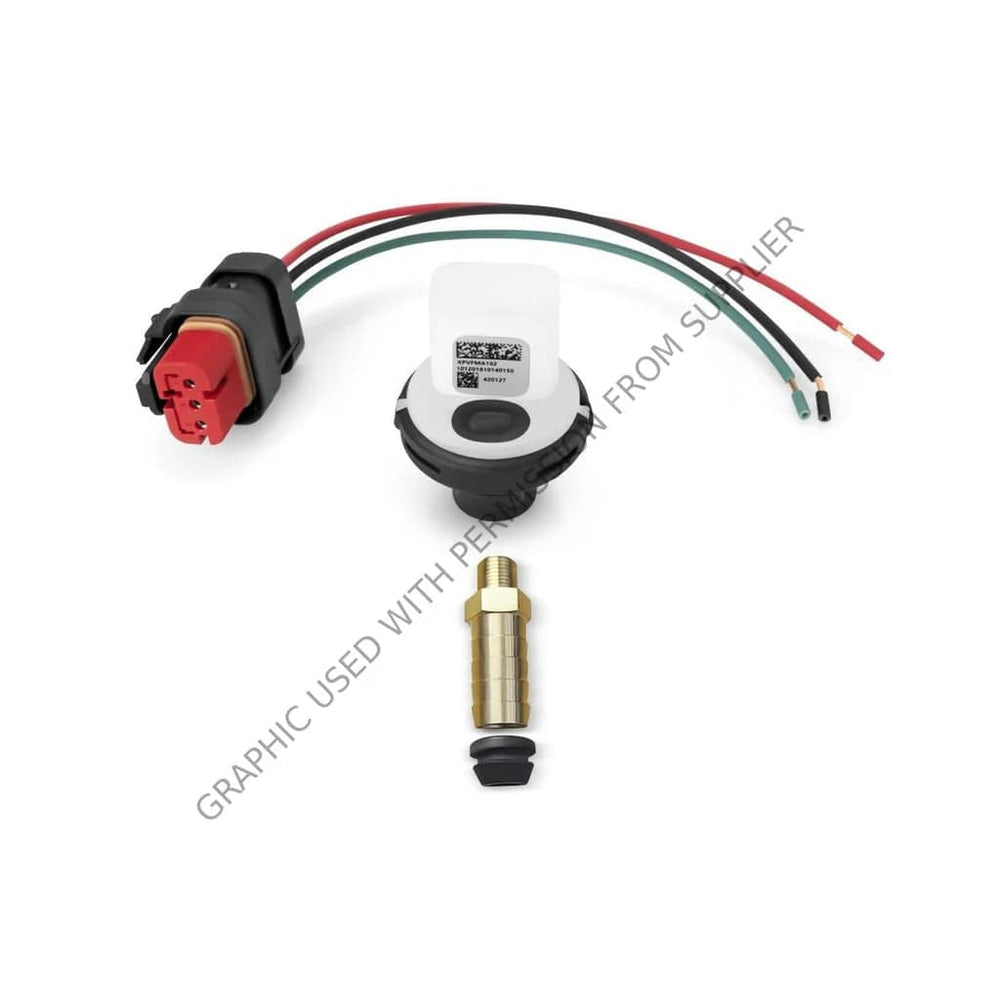

This Fleetguard SK15959 Kit Contains:

  • One LED Air Filter Restriction Indicator Sensor
  • One electrical harness pigtail for integration back into the power supply.
  • The electrical harness pigtail contains three independent wires. Green = Signal,
    Red = Positive, and Black = Ground
  • A Black sensor reset button, when pushed, resets the Sensor is provided to reset the sensor at each Air filter change interval.
  • A Brarbed Grommet fitting ensures the installation of this sensor.

This Fleetguard SK15959 LED sensor kit utilizes a built-in LED indicator light that provides a restriction indication as long as power is supplied to the Sensor. The Sensor offers three different colors to indicate the level of restriction in your Air Filter. The Air Filter Restriction sensor changes colors based on filter loading restrictions.

  • Low level of air filter restriction is provided by a Green light.
  • Moderate level of air filter restriction is provided by a Yellow light
  • A Red light indicates a High level of air filter restriction to indicate Replacement is now required.

FleetguardFIT - Filtration Intelligence, Technology LED Sensors provide these benefits:

  • Real-time status updates so maintenance can be based on real-world conditions.
  • Maximizes uptime
  • Reduces maintenance cost
  • Extends equipment life
  • Maximizes the Air Filter Lifespan.
  • It provides a means to change your filter at the Terminal Restriction interval.


The Fleetguard SK15959 LED Air Filter Restriction Indicator is an electro-pneumatic sensor specifically designed to detect air filter conditions. It is easily installed on the air intake filter housing and provides accurate and reliable light-indicating readings.

FleetguardFIT Air Filter Restriction Indicators provide a means to proactively plan for maintenance instead of reacting to breakdowns. This can result in significant cost savings in filter and maintenance expenses over the lifetime of your engine. Avoid unnecessary filter replacements By avoiding early filter changes, and you can reduce the risk of dust entering the engine, not just during filter removal but also during the filter's most effective dirt-removal phase in the final two-thirds of its lifespan.

Look for the Fleetguard Atmus Filtration Air Filter Sensor that is MADE IN THE USA!

  • By KLM Performance
  • Engine : Any engine using an air filter with an enclosed air box.
  • Sensor Type: Air Filter Restriction Indicator
  • Item Number: SK15959
  • Make This Universal Air Restriction Sensor applicable to engines with an enclosed air box.
  • Sensor Operating Temperature Range: -35 to 85C
  • Pressure Connection Port: 1/8 - NPT (F)
  • Model:
  • Year:
  • Manufacturer Part No: SK15959
  • Product Application: The Fleetguard SK15959 LED Air Filter Restriction Indicator Guage is considered a Univeral Application Sensor. This product can be used in almost any engine using an Airbox that houses the air filter element.
  • Height: 3
  • Width: 8
  • Brand: Fleetguard Atmus Filtration Technologies
  • FAQ: What is an Air Filter Restriction Indicator or AFRI Sensor
    An air filter restriction indicator is a device that measures the number of airflow restrictions in an air filter. It is used to help determine when the air filter needs to be replaced. The indicator typically comprises a small, hand-held sensor placed into the air filter housing. The sensor measures the pressure drop across the air filter and displays the results on a digital readout. Can this product upgrade an existing mechanical indicator?  Yes, this Fleetguard SK15959 FIT LED Air Filter Restriction Indicator allows you to replace your current 25” threaded mechanical Restriction Indicator. What does the FleetguardFIT™ stand for?
    The FleetguardFIT™ stands for Filtration Intelligence Technology, as this Air Flow Sensor is part of the most comprehensive filtration monitoring system.

    Does the Fleetguard FIT air filtration sensor go before or after the air filter?

    The Fleetguard FIT air filtration restriction sensors are installed before the air filter.
    These sensors are mounted directly to the air cleaner housing in order to measure the restriction across the air filter.
    This placement allows the sensor to accurately monitor the pressure drop and provide real-time status updates on the filter's condition.

  • Part Number: SK15959
  • Manufacturer: Fleetguard Atmus Filtration Technologies
  • Product Note: Using an air filter restriction indicator can extend the life of an air filter by allowing you to replace it only when necessary. This can save money and reduce waste. It can also help ensure that your engine receives adequate airflow, which is critical for proper operation.
