Fleetguard SK15960 LED Air Filter Restriction Indicator

Fleetguard SK15960 FIT LED Air Filter Restriction Indicator

Fleetguard® SK15960 FleetguardFIT™ Filtration Intelligence Technology is a single type of sensor used in the most comprehensive filtration monitoring system available for filters, lube oil, and hydraulic systems that provide real-time status updates so maintenance can be based on real-world conditions. This kit contains LED Air Filter Restriction Indicator (AFRI) Sensor and pigtail electrical harness for integration. The LED Air Restriction Sensor is an electro-pneumatic light-indicating sensor installed on the air intake filter housing to detect air filter conditions accurately. This Sensor is designed to replace your current 21" Threaded Mechanical Restriction Indicator.

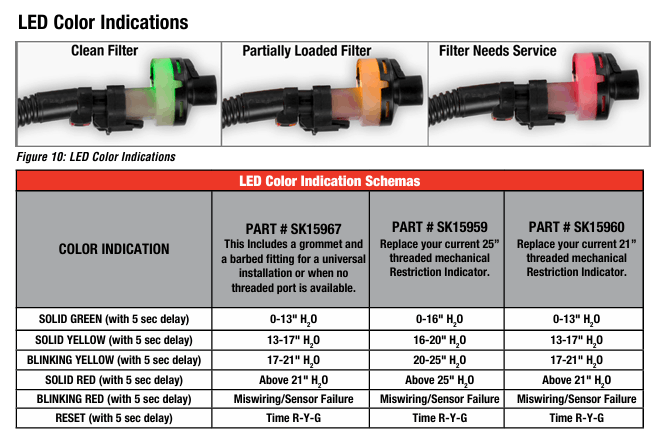

This Fleetguard SK15960 LED sensor kit utilizes a built-in LED indicator light that provides a restriction indication as long as power is supplied to the Sensor. The Sensor offers three different colors to indicate the level of restriction in your Air Filter. The Air Filter Restriction Sensor changes colors based on filter loading restrictions.

• Low level of air filter restriction is provided by a Green light.
• Moderate level of air filter restriction is provided by a Yellow light
• A Red light provides High level of air filter restriction to indicate Replacement is now required.

The Fleetguard SK15960 Air Filter Restriction Indicator or AFRI Sensor Applications:

• Cummins engines that are equipped with the FleetguardFIT™ Filtration Intelligence Technology system.
• Cummins ISB series engines.
• Cummins ISC series engines.
• Cummins ISL series engines.
• The above-noted Cummins engines are primarily used in trucks, buses, and industrial equipment.

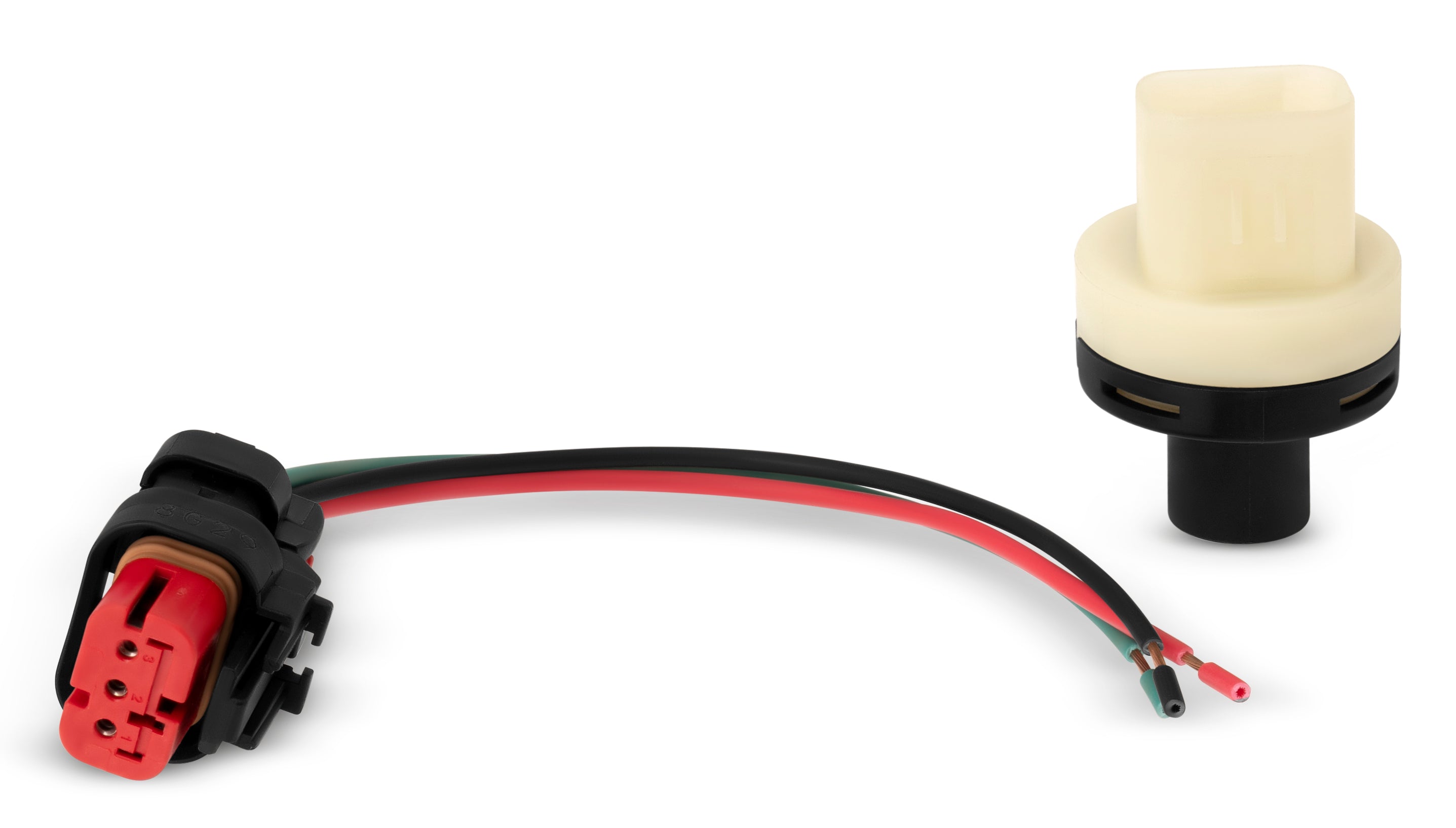

This Fleetguard SK15960 Kit Contains:

• One LED Air Filter Restriction Indicator Sensor
• One electrical harness pigtail for integration back into the power supply.
• The electrical harness pigtail contains three independent wires. Green = Signal,
  Red = Positive, and Black = Ground
• A Black sensor reset button, when pushed, resets the Sensor is provided to reset the sensor at each Air filter change interval.
• This Sensor is designed to replace your current 21" Threaded Mechanical Restriction Indicator.

This Fleetguard SK15960 LED sensor kit utilizes a built-in LED indicator light that provides a restriction indication as long as power is supplied to the Sensor. The Sensor offers three different colors to indicate the level of restriction in your Air Filter. The Air Filter Restriction sensor changes colors based on filter loading restrictions.

• Low level of air filter restriction is provided by a Green light.
• Moderate level of air filter restriction is provided by a Yellow light
• A Red light indicates a High level of air filter restriction to indicate Replacement is now required.


FleetguardFIT - Filtration Intelligence, Technology LED Sensors provide these benefits:

• Real-time status updates so maintenance can be based on real-world conditions.
• Maximizes uptime
• Reduces maintenance cost
• Extends equipment life
• Maximizes the Air Filter Lifespan.
• It provides a means to change your filter at the Terminal Restriction interval.

The Fleetguard SK15960 LED Air Filter Restriction Indicator is an electro-pneumatic sensor that is specifically designed to detect air filter conditions. It is easily installed on the air intake filter housing and provides accurate and reliable light indicating readings.

FleetguardFIT Air Filter Restriction Indicators provide a means to proactively plan for maintenance instead of reacting to breakdowns. VThis can result in significant cost savings in filter and maintenance expenses over the lifetime of your engine. Avoid unnecessary filter replacements By avoiding early filter changes, you can reduce the risk of dust entering the engine, not just during filter removal but also during the filter's most effective dirt-removal phase in the final two-thirds of its lifespan.

Look for the Fleetguard Atmus Filtration Air Filter Sensor that is MADE IN THE USA!
