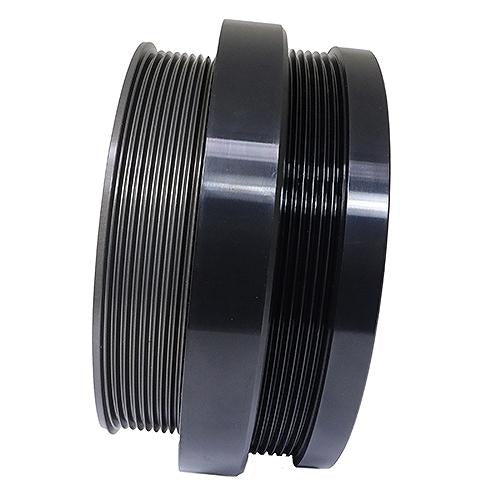

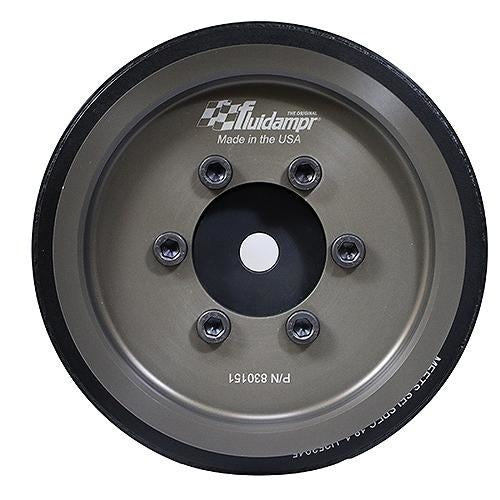

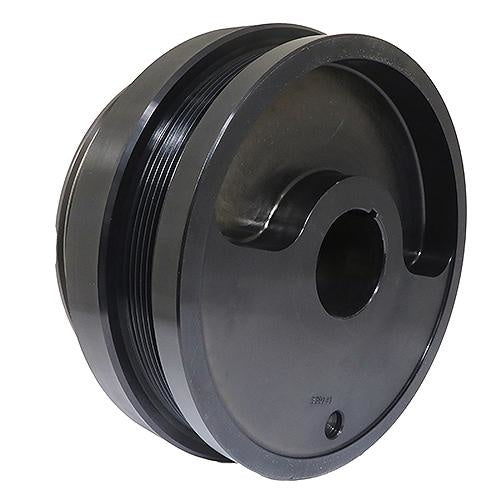

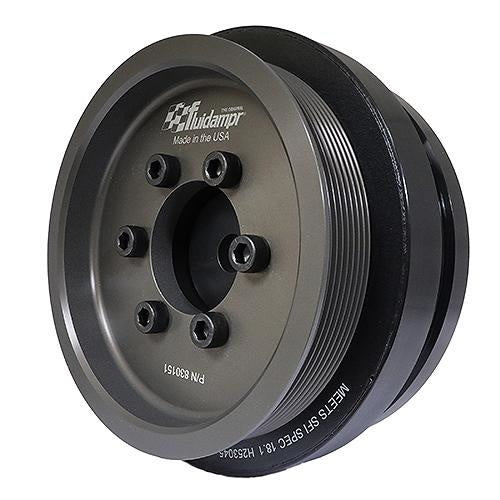

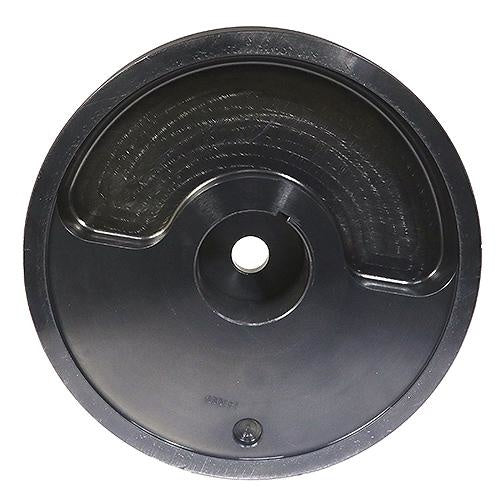

Replacement Performance Diesel Damper for LP5 Duramax Engines
The Fluidampr 830151 High Performance Diesel Harmonic Balancer Applications:
2020 To 2022 Chevrolet Silverado 2500HD series trucks.
2020 To 2022 Chevrolet Silverado 3500HD series trucks.
2020 To 2022 GMC Sierra 2500HD series trucks.
2020 To 2022 GMC Sierra 3500HD series trucks
Fluidampr 830151 6.6L Duramax 2020 to Current Model Harmonic Fluid Dampers Specifications:
Material = Steel Coated in a Black Zinc Finish
Outside Diameter = 8.390"
Unit Weighs = 30.6 Pounds
Balance = External
Approved Safety Rating SFI 18.1
Bore Diameter = 1.9300
Length = 2.66"
Keyway Single 5MM
Crankshaft Damper Features the Required Dual Pullies For Straightforward Installation.
Benefits of installing the Fluidampr 830151 high performance diesel viscous harmonic damper:
Externally mounted viscous vibration damper.
Designed for Stock to Extreme Power levels.
Offers critical protection for High Performance motors.
Designed as a direct bolt-on replacement crankshaft damper.
Protect your engine from destructive torsional vibrations.
Works at all RPM and Power levels.
Viscous Damper continuously self-tunes in real-time to control destructive vibrations.
Will increase Torque and Horsepower output!
Dramatically reduces the chance of crankshaft failure.
Preserves the service life of your motor.
Reduced wear on the main bearings.
Reduced wear on the timing gear.
Provides more Stable Valve train operation.
Lower chance of a crank failure
The installation will quiet and smoothen out the chatter in diesel engines.
This crankshaft damper is the highest quality aftermarket vibration damper available.
Ensure your High Performance Duramax Damper stays in place with the Fluidampr 300010 GM Duramax 6.6L High Strength Bolt Kit. Fluidampr High Strength Bolt Kit, part number 300010 is recommended for proper installation in performance applications. The kit contains a diamond-plated friction washer and an ARP high-strength bolt. Combined these help ensure a secure connection to the crankshaft and protects against fretting.
Make: Chevy | GM | Chevrolet | General Motors | GMC
Model: 2500HD | 3500HD | 4500 | 5500
Year: 2020 | 2021 | 2022
Manufacturer Part No: 830151
Product Application: 2020 To Current Model Year Chevrolet and General Motors vehicles with the 6.6L Duramax L5P Diesel Engines
FAQ: Where is the Fluidampr Viscous Harmonic Damper manufactured? The Fluidmapr product line is an American Made product manufactured in Springville New York at ISO 9001 accredited facility using the latest precision matching components available to make these computer-balanced crankshaft dampers. Does this Harmonic Damper have the SFI 18.1 rating? Yes, 2020 To Current Model GM and Chevrolet. 6.6L Duramax L5P is approved with the SFI 18.1 Rating.
Part Number: 830151
Product Note: Only the Fluidampr 830151 viscous crankshaft damper can increase the power output while offering the protection you need at all RPMs of your 6.6L L5P Duramax diesel.
