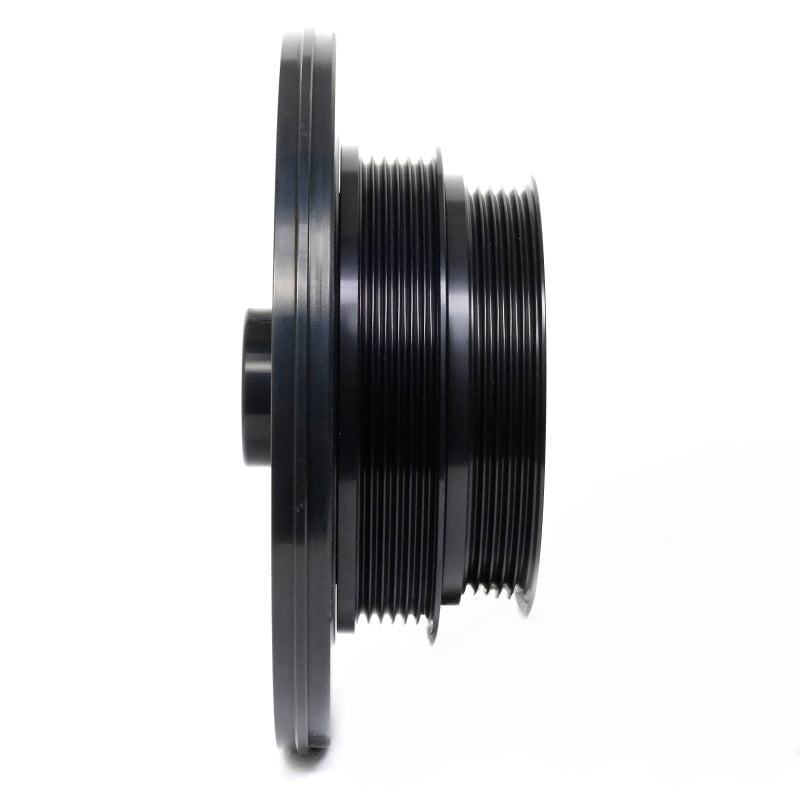

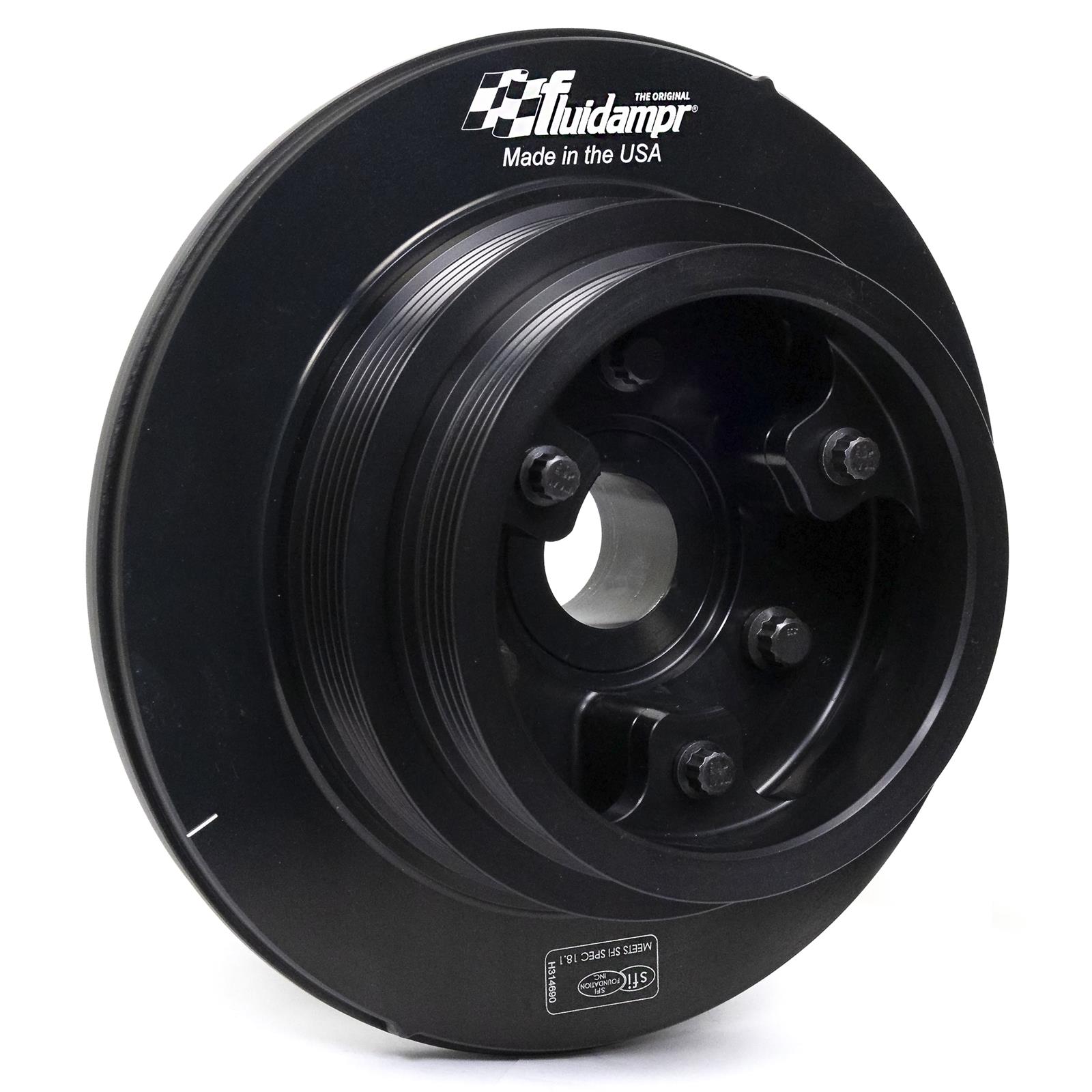

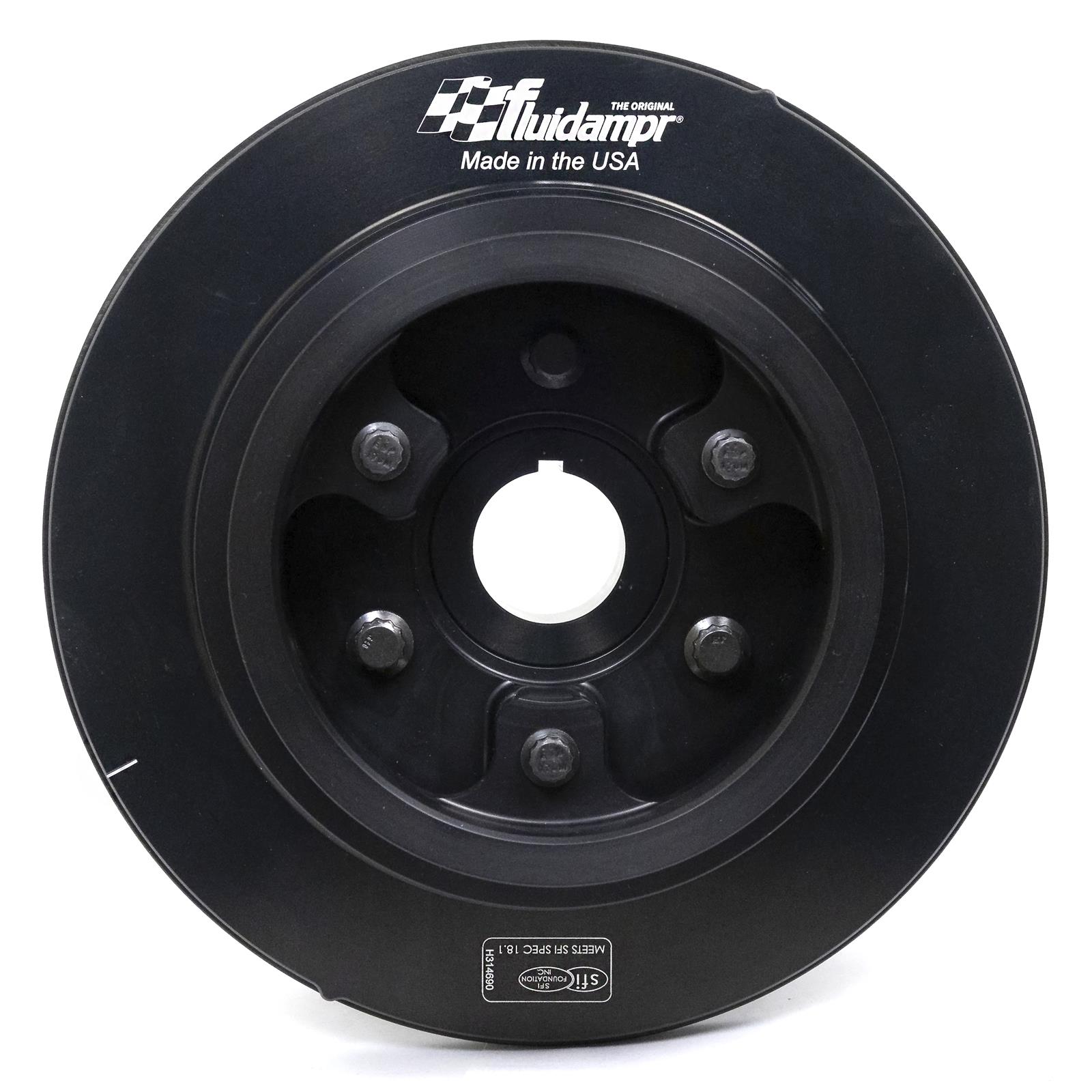

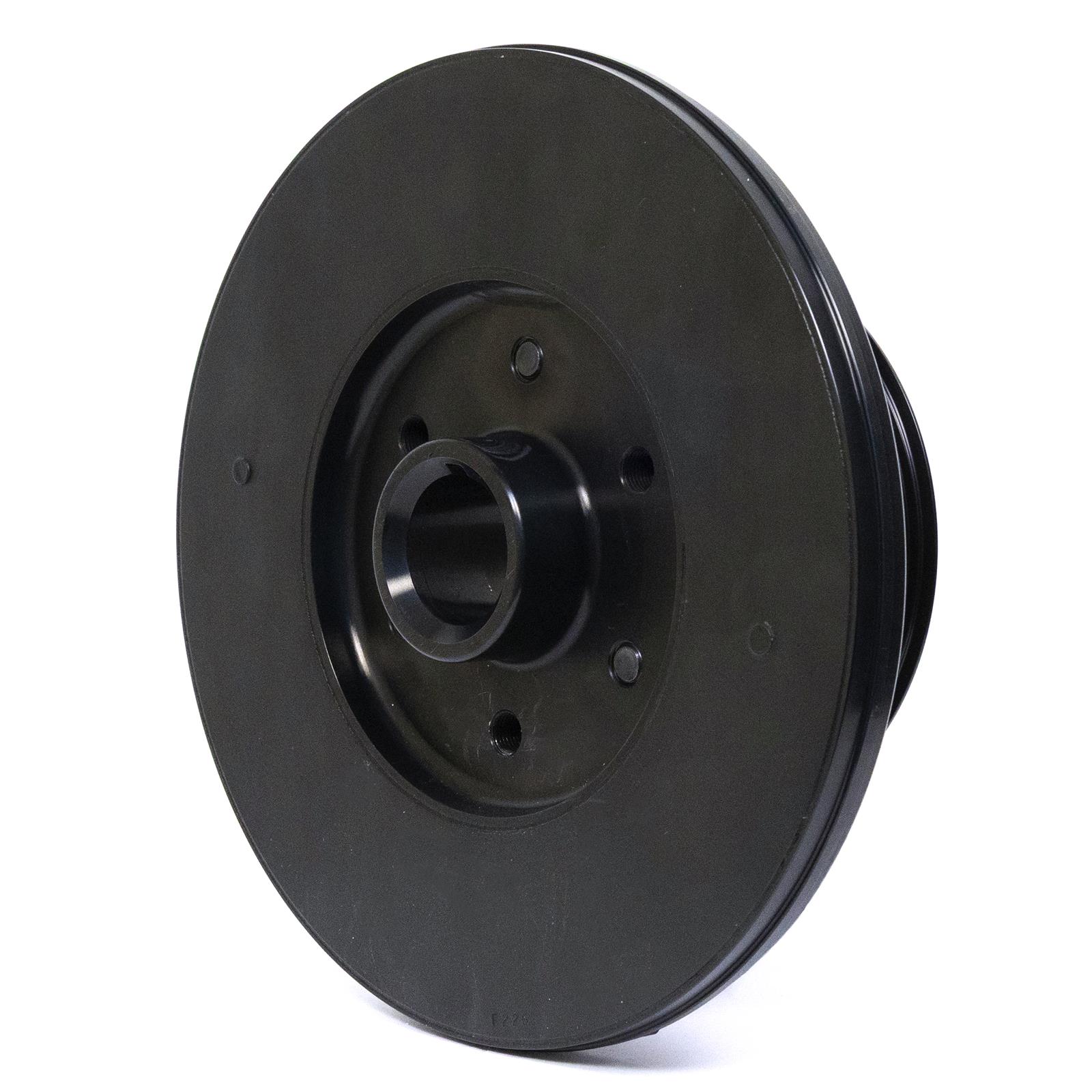

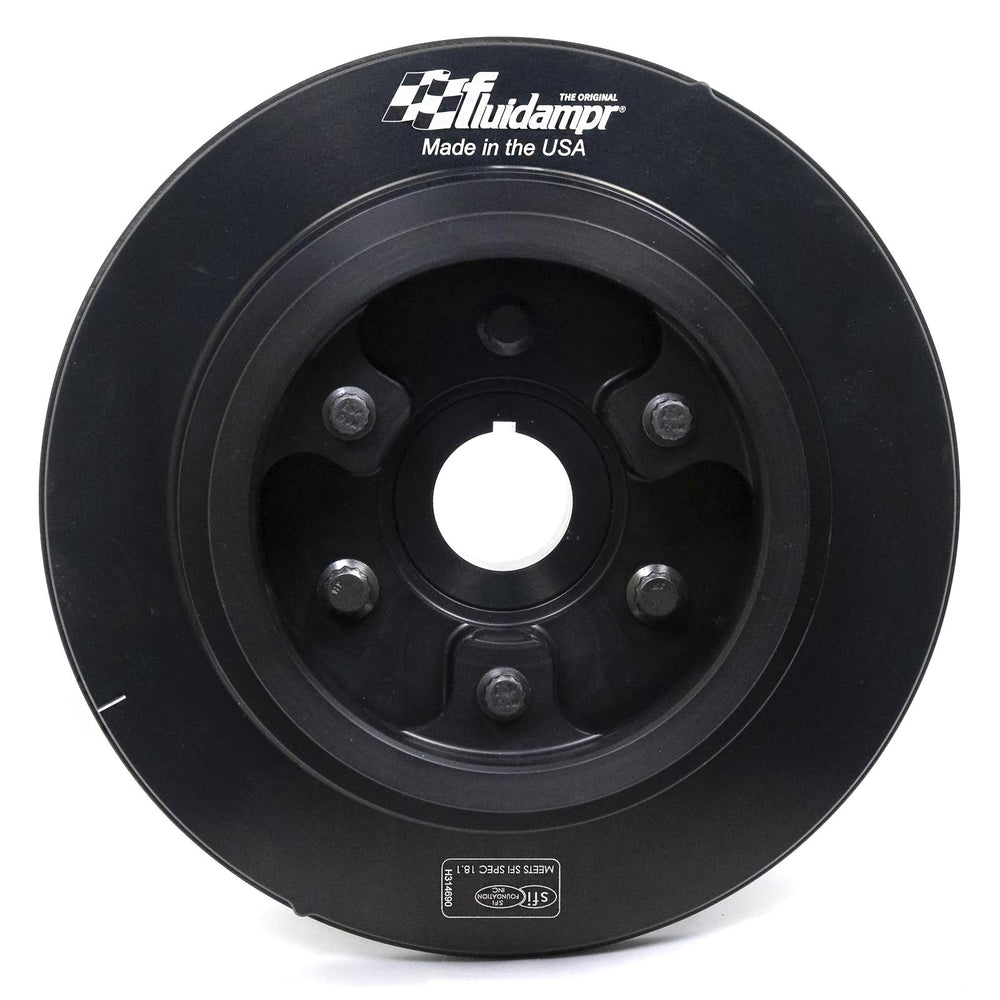

Fluidampr 843301 Performance Harmonic Crankshaft Damper for BMW M52TU / M54

Upgrade your BMW inline-six engine with the Fluidampr 843301 Performance Harmonic Damper, engineered to control destructive crankshaft torsional vibration across a broad RPM range.

Designed for select BMW M52TU and M54 inline-six engines, the Fluidampr 843301 replaces the factory-style elastomer damper with Fluidampr’s proven viscous damping technology. It is an excellent upgrade for performance street cars, track builds, drift cars, autocross vehicles, and modified BMW engines where increased horsepower, torque, RPM, and rotating-assembly changes can place additional demands on the factory harmonic damper.

Unlike a conventional rubber/elastomer damper, Fluidampr uses an internal inertia ring suspended in viscous silicone fluid to continuously control crankshaft torsional vibration. The design does not require tuning or rebuilding and automatically responds as engine speed and harmonic conditions change

Why Upgrade Your BMW Harmonic Damper?

Every combustion event causes the crankshaft to twist and rebound slightly. These torsional vibrations occur throughout the engine’s operating range and can become increasingly significant as horsepower, torque, engine speed, and rotating assembly configurations are changed.

The factory harmonic damper is designed around the requirements of a stock engine with a specified power output level. The OEM BMW damper is subjected to age, deterioration of the original elastomer material, and performance modifications can reduce its ability to effectively control the destructive crankshaft harmonics.

The Fluidampr 843301 is designed to provide broad-range torsional vibration control for BMW M52TU and M54 performance applications at all power output levels.

The installation of a viscous crankshaft damper provides these benefits:

• Controls harmful crankshaft torsional vibration
• Provides damping across a broad RPM range
• Helps reduce stress and wear on critical engine components
• Helps reduce main bearing and timing-component wear
• Helps lower the risk of crankshaft damage caused by excessive torsional vibration
• Supports more consistent engine operation at elevated RPM
• Automatically adapts to changing harmonic conditions
• Excellent for stock, modified, naturally aspirated, and performance-built engines
• No periodic tuning or rebuilding required
• SFI 18.1 approved for motorsports applications
• This Viscous Torsional Vibration Damper is MADE IN THE USA!

Fluidampr Viscous Damper Technology

Traditional OEM harmonic dampers commonly rely on an elastomer or rubber element to control vibration. The damping characteristics of that material are engineered around a specific frequency range and can change as the material ages. Your BMW engine’s OEM harmonic damper is designed to reduce harmonic noise and imbalance in the rotating assembly. These engine harmonics can easily destroy an engine if not properly controlled by a harmonic damper. However, BMW’s dampers are of a simple design and though they do an alright job of reducing harmonics, they leave a lot of room for improvement.

Fluidampr takes a different approach.

Inside the Fluidampr is an inertia ring surrounded by viscous silicone fluid. The outer housing is connected to the crankshaft. As torsional vibration causes the crankshaft and damper housing to rapidly accelerate and decelerate, the inertia ring moves relative to the housing.

Movement of the inertia ring through the silicone fluid creates shear that converts unwanted torsional vibration into heat.

Because the system is viscous rather than dependent on a tuned rubber element, the damper can respond to changing harmonic conditions throughout the engine’s operating range.

This makes Fluidampr particularly well suited for BMW engines that have been modified beyond their original factory configuration.

BMW Viscous Crankshaft Damper Applications

The Fluidampr 843301 is designed for these BMW vehicles equipped with M52TU and M54 inline-six engines.

Additional BMW Applications

The Fluidampr manufacturer applications catalog provides broader coverage for M52/M54-series powered BMW 3 Series, 5 Series, X Series, and Z Series chassis. Because BMW the engine and accessory-drive configurations vary by year, model, chassis, engine code, and market, please verify your engine code and accessory-drive configuration before ordering.

NOTE:  This Viscous Damper Does NOT fit BMW M54 engines, including the 2001–2006 E46 BMW M3.

Earlier non-TU M52 applications may use a different damper configuration. Do not purchase based solely on vehicle year or the general “M52” engine-family designation.

For M52 applications, verify the exact engine code before ordering.

Fluidampr 843301 Specifications

Integrated Accessory Drive Pulley

The Fluidampr 843301 incorporates an accessory-drive pulley arrangement designed around the applicable BMW M52TU/M54 configuration.

The design uses a removable stock-size 5.75-inch 6-rib inner pulley and 5.00-inch 5-rib outer pulley.

The outer pulley uses a 3.20-inch bolt circle, providing compatibility potential with common dry-sump oil-system drive mandrels used in competition engine configurations.

Always verify accessory-drive requirements when installing the damper on a modified or motorsports application.

Built for BMW Performance Applications

The Fluidampr 843301 is an excellent choice for BMW owners and engine builders preparing vehicles for:

As power and RPM increase, effective crankshaft torsional vibration control becomes increasingly important to engine durability.

SFI 18.1 Certified for Professional Racing Use

The Fluidampr 843301 is built to meet strict SFI 18.1 certification standards, ensuring it delivers the level of safety and durability required in sanctioned motorsports environments. This approval verifies that the damper can withstand the extreme rotational forces, elevated RPM ranges, and high‑load conditions common in competitive racing and serious performance engine builds.

For builders operating beyond typical street‑engine limits, an SFI 18.1–approved harmonic damper is not optional—it is a mandatory safety component. The Fluidampr 843301 provides the proven strength and reliability demanded by race teams, high‑performance shops, and anyone pushing their engine to its maximum potential.

Precision Manufactured in the USA

Fluidampr performance dampers are manufactured in the United States using precision-machined and computer-balanced components.

The 843301 features a durable black zinc finish and engraved markings for a professional appearance and long-term durability in demanding street and motorsports environments.

Fluidampr’s parent company, Vibratech TVD, specializes in torsional vibration damper engineering and development for automotive, motorsports, commercial, industrial, marine, and defense applications.

Installation Notes

Professional installation is recommended.

Before installation:

• Confirm your BMW’s exact year, model, chassis, and engine code.
• Verify that the accessory-drive configuration matches the Fluidampr 843301 application.
• Inspect the crankshaft snout and keyway for damage, burrs, scratches, or irregularities.
• Follow BMW factory procedures when removing the original crankshaft damper.
• Follow the current Fluidampr installation instructions when installing the replacement damper.
• Use the correct BMW crankshaft bolt installation and torque procedure.
• Replace torque-to-yield or single-use hardware whenever required by BMW.
• Inspect accessory belts, tensioners, pulleys, and related components during installation.

Mounting hardware is not included with Fluidampr 843301.

Never attempt to force the damper onto the crankshaft using improper tools. Correct installation is critical to crankshaft, damper, and engine durability.

Why Choose Fluidampr for Your BMW M52TU or M54?

BMW’s M52TU and M54 inline-six engines have become popular platforms for street performance, drifting, track use, forced-induction builds, and engine swaps.

Increasing engine output or RPM can change the torsional vibration characteristics of the crankshaft. Fluidampr’s viscous damping technology is designed to respond across a broad frequency and RPM range instead of relying on a conventional elastomer tuned around a narrower operating condition.

For BMW enthusiasts looking to build a durable foundation for increased performance, the Fluidampr 843301 Performance Harmonic Damper provides a purpose-built solution for controlling crankshaft torsional vibration.

Product Highlights

Part Number: 843301
Brand: Fluidampr
Engine: BMW M52TU / M54 Inline-6
Diameter: 8.50 inches
Material: Steel damper with aluminum pulley
Balance: Internal
Finish: Black Zinc
Safety: SFI 18.1
Weight: 10.1 lbs.
Made In: USA
Hardware: Not Included
