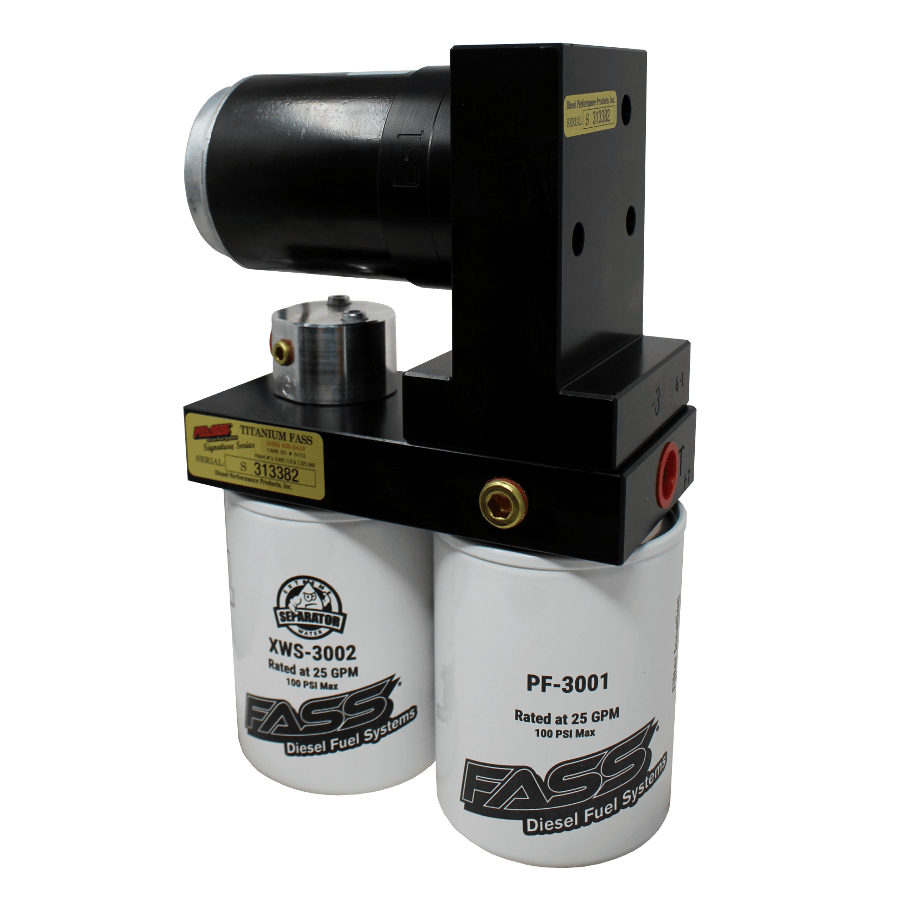

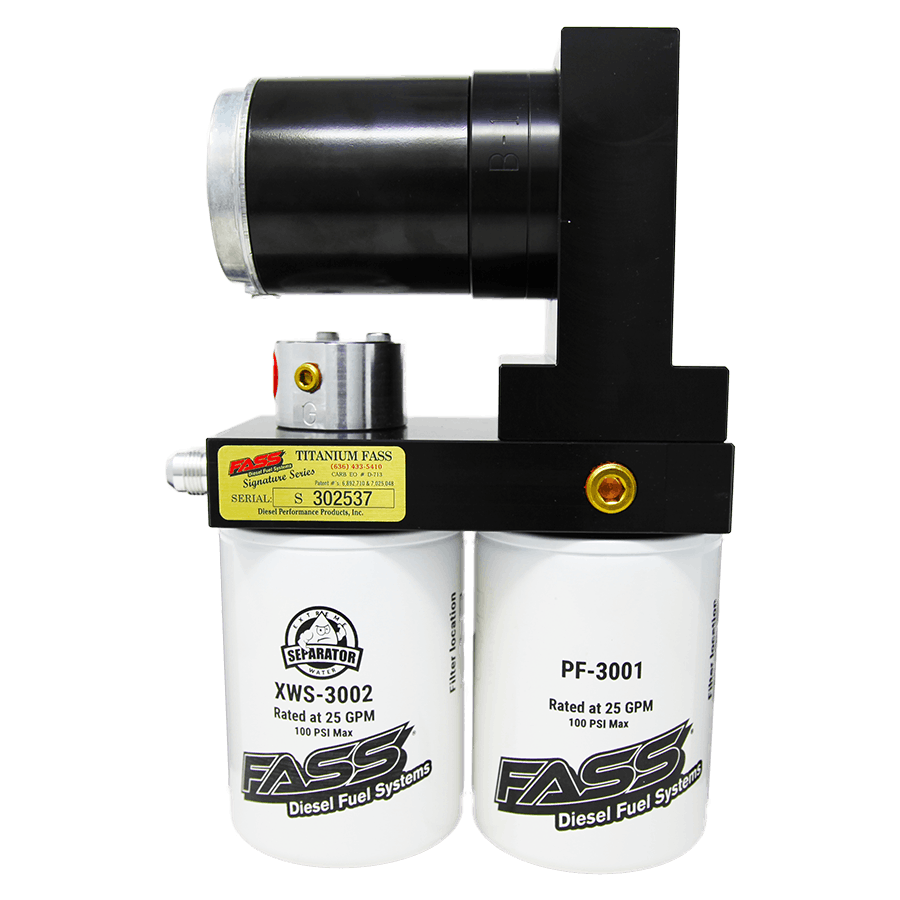

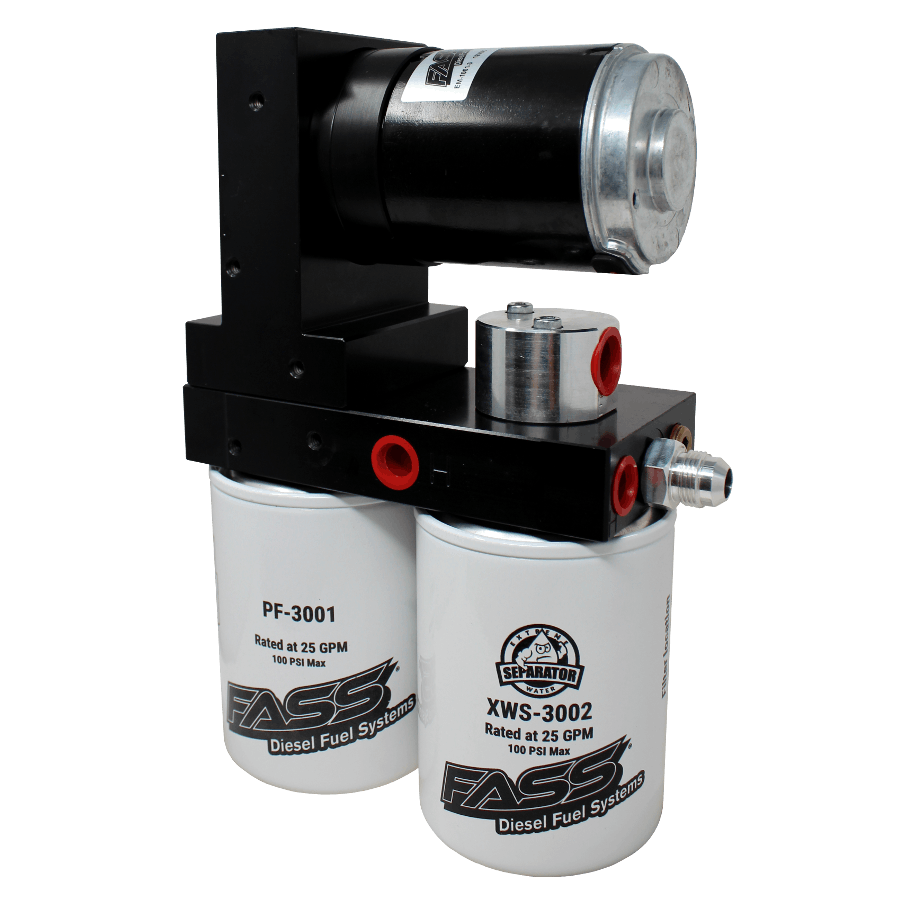

FASS Titanium Signature Series Diesel Fuel System 2008 to 2010 Ford Powerstroke 6.4L Titanium Signature Series 290GPH Fuel Air Separation System - Lift Pump
The FASS Titanium Signature Series TS F16 290G High Performance Diesel Fuel Lift Pump is specifically designed for the 2008 to 2010 Ford Super Duty trucks. This is a Low-Pressure Lift Pump that allows you to bypass the OEM Ford Lift Pump on your Powerstroke 6.4L diesel engine. This Ford Titanium Signature Series Lift Pump will supply your stock power or modified 6.4L Powerstroke diesel engine with enough fuel to support between 1200 and 1500 hundred Horsepower.
TheFASS Ford 6.4L Powerstroke Titanium Signature Series TS F16 290G Diesel Fuel Lift Pump Applications:
2008 to 2010 Ford F-250 Super Duty trucks with the 6.4L Powerstroke
2008 to 2010 Ford F-350 Super Duty trucks with the 6.4L Powerstroke
2008 to 2010 Ford F-450 Super Duty trucks with the 6.4L Powerstroke
2008 to 2010 Ford F-550 Super Duty trucks with the 6.4L Powerstroke
The Titanium Signature Series is the latest version of the FASS high performance diesel fuel lift pumps. The Titanium Signature Series Fuel Pump incorporates the latest features and fuel pump improvements. This newTitanium Signature Series TS F16 290G diesel fuel system was engineered by FASS Fuel Systems as the top-performing, longest lasting and most reliable aftermarket diesel fuel filtration system available.
The FASS Ford Air Fuel Separation System for the 2008 to 2010 Ford 6.4L Powerstroke provides the purified fuel, correct fuel pressure and delivery volume to ensure the optimal engine operation and long trouble-free life of your entire fuel injection system.
This Titanium Signature Series lift pump provides the following benefits:
Premium filtration of your diesel fuel.
A fuel supply rate of 290 gallons per hour.
Continuous fuel pressure of Ten PSI is supplied directly to the fuel injection pump.
Backed by a Manufacturers' Limited Lifetime Warranty.
This Titanium Signature Series fuel system can support your stock power or modified Ford 6.4L Powerstroke diesel engine with enough fuel for between twelve hundred and fifteen hundred Horsepower.
A Titanium Signature Series fuel system also offers Two integrated diesel fuel heater ports that are machined into the fuel pump body. These ports provide you with increased performance when dealing with Cold Starts.
The advanced diesel fuel filtration provides the benefits that will help protect your entire fuel injection system throughout the life of your engine.
This Fuel Air Separation System provides the patented air and vapor removal process.
The Titanium Signature Series provides an improved diesel fuel filtration level down to Two Microns.
This FordTitanium Signature Series kit uses the FASS EM-1001 Series motor to produce low fuel flow and the optimum pressure output levels.
Reduced lift pump installation times are now achievable with the 6061 T-6 Billet Aluminum Machined Bulkhead fittings. This updated fitting functions as both suction and a return tube.
Fast and easy diesel fuel filter changes take only minutes to perform.
The installation of a FASS Titanium Signature Series lift pump will provide increased power levels, improved fuel economy, a smoother running engine as well as increased combustion efficiency.
The new and improved FASS Titanium Signature Series fuel pumps have a Black Filter body.
These Advanced Features Are Incorporated Into Every Ford Titanium Signature Series Fuel Air Separation System:
FASS Whisper Technology (FWT)was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
Performance Radius Cuts (PRC)are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
Mass Flow Return (MFR)technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor, and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure “EXTREME” cold weather operations!
Bolt-On Bracket MountsThis New Mounting Bracket provides a straightforward FASS Lift Pump installation with improved bolt-on brackets. With the incorporation of a proven Ford Super Duty factory bed bolt. Mounting your Titanium Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.
KLM Performance is an Authorized FASS Dealer and we STRONGLY RECOMMEND that before you begin the installation of your FASS TS F16 290G Titanium Signature Series 290 GPH Fuel System you complete the registration of the Lifetime FASS Warranty online athttps://fassride.com/register-a-warranty/
NOTE: This is a high flow and low-pressure diesel fuel lift pump that requires an unrestricted flow of diesel fuel to the lift pump. It is suggested for this higher performance Lift Pump that you upgrade your pump fuel supply with aFuel Sumpor theFASS STK-1002 Suction Tube Kit. The STK-1002 bulkhead kit allows for a larger volume of diesel fuel to be retrieved by the fuel pump and will offer a convenient return option. This is important for high-performance Ford Super Duty Powerstroke applications that demand a large amount of diesel fuel for aggressive fueling upgrades.
2008 to 2010 Ford 6.4L Powerstroke 290GPH FASS Lift Pump Features:
New Whisper Technology
Preset 10 PSI Fuel Pressure
Complete Replacement Pump
290 Gallons Per Hour Flow Rating
Removes Water, Air, and Debris From Diesel Fuel
Two Micron Filtration Rating
Protects and Extends The Life Of Your Injectors
Improved Cold Weather Starts
Decreases Carbon Monoxide and Carbon Dioxide Emissions
½ Inch Fuel Lines and Ports
Bulkhead and Suction Tube Kit
Fuel Mileage Improvement
Improved Fuel Volume Delivery Rate and Pressure
Smoother Engine Idle
One Optional Electric Heater Ports
One Optional Coolant Heater Ports
Optional Fuel Pressure Gauge Port
Limited Lifetime Warranty
30,000 Mile Filter Life Expectancy
Quietest Motor On The Market
Engine: 6.4L Powerstroke
Flow Rate: 290 Gallons Per Hour
Fuel Pressure: 290 Gallons Per Hour
Fuel Type: Diesel Fuel
Item Number: TSF16290G
Model: F250 | F350 | F450 | F550
Year: 2008 | 2009 | 2010
Manufacturer Part No: FASS TS F16 290G
Product Application: 2008 to 2010 Ford F-250, F-350, F-450, and F-550 Super Duty Trucks with the 6.4L Powerstroke Diesel Engine
FAQ: Why do I need to install an Aftermarket Lift Pump on my Powerstroke diesel engine? If you want to increase the performance or power level of your Powerstroke diesel engine you will need to ensure you obtain the proper flow of purified diesel fuel. Today is very simple to just add aftermarket performance parts to obtain more power. One of the primary principles to obtain increased power is the ability to provide more fuel at the proper pressure and delivery rates. This is where the Titanium Series Lift Pump comes in. The diesel engine holds the top spot for the most efficient internal combustion over all other engine types, adding a new diesel fuel pump to your diesel engine can vastly increase its performance output level.
Part Number: TS F16 290G
Manufacturer: FASS Fuel Systems
Product Note: This FASS Titanium Series High Performance Lift Pump is designed to support the 2008 to 2010 Stock Powered for between one thousand two hundred and one thousand five hundred Horsepower Ford Super Duty Trucks powered with the 6.4L Ford Powerstroke diesel engine.
