Cummins

FG LF9080

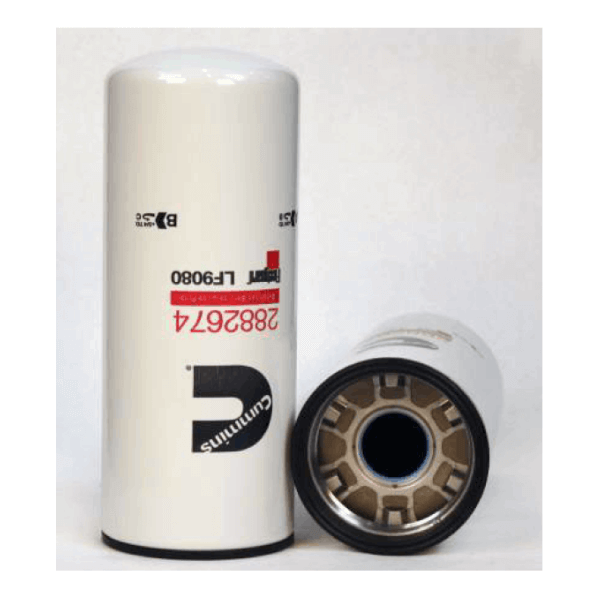

Cummins ISX Oil Filter Fleetguard LF9080

Cummins ISX Spin-On Oil Filter LF9080 by Fleetguard

Fleetguard LF9080 Lube Filter for Cummins Trucks

The Fleetguard Lubrication Filter 9080 Oil Filter is approved for the following Cummins engine series:

  • ISX engines
  • ISM engines
  • QSX engines
  • QSM engines
  • M11 engines.

This LF9080 Oil Filter is a Cummins replacement oil filter features:

  • Venturi™ Combo Filter that provides high-efficiency filtration for extended oil service intervals.
  • Offers class-leading protection to the engine and components.
  • Constructed with a Full-Flow plus Stacked Disc design delivers optimum performance.
  • Provides proven reliable operation.
  • Maximize your equipment operating time and lower the associated costs.
  • Oil Filter contains the patented StrataPore™ Media with a gradient density which provides high oil flow efficiency.
  • Low cold start restriction and high capacity for contaminant retention.
  • This Fleetguard LF9080 Lube Filter for Cummins powered trucks is sold with the gasket for the proper leak-free installation.

Fleetguard LF9080 ESI Diesel Oil Lube Spin-On Filter Cross References:

  • Cummins 3406809
  • Cummins 3101869
  • Hastings LF499
  • Baldwin BD7154
  • Baldwin BD7154
  • Hastings LF499
  • Wix 57746XD
  • Napa 7746XD
  • Donaldson P559000
  • Luberfiner LFP9001

Cummins recommends replacing the ISX LF9080 Oil Filter Change interval is: 25,000 Miles 800 Hours 6 Months. Fleetguard LF9080 Replacement

Cummins ISX Oil Filter Specifications:

  • Outside Diameter: 4.68 in
  • Height: 11.602 in
  • Thread Size: M95 X 2.5-7H INT

The Benefits of using this Fleetguard LF9080 Oil Filter on your Cummins diesel engine:

  • Longer service intervals Reduced maintenance costs Lower operating costs.
  • Longer component life.
  • Fine particle removal extends engine life.
  • Filter Protects Turbos and Fuel Injection Equipment.
  • Protects highly loaded components such as the valve train,
  • Sludge removal for a cost-saving oil.
  • Extended oil change interval options.
  • Removes soot and sludge introduced into the oil by the latest after treatment systems

NOTE: This Fleetguard LF9080 Oil Filter has now been discountinued by Flleetguard. This oil filter has now been superceeded with the Fleetguard LF14000NN oil filter for improved filtration and longevity.

  • engine: ISX
  • Flow Rate:
  • Item Number: FG LF90806
  • Make: : Cummins
  • Model: Diesel
  • Year: 1963 | 1964 | 1965 | 1966 | 1967 | 1968 | 1969 | 1970 | 1971 | 1972 | 1973 | 1974 | 1975 | 1976 | 1977 | 1978 | 1979 | 1980 | 1981 | 1982 | 1983 | 1984 | 1985 | 1985.5 | 1986 | 1987 | 1988 | 1989 | 1990 | 1991 | 1992 | 1993 | 1994 | 1995 | 1996 | 1997 | 1998 | 1998.5 | 1999 | 2000 | 2001 | 2002 | 2002.5 | 2003 | 2003.5 | 2004 | 2004.5 | 2005 | 2005.5 | 2006 | 2006.5 | 2007 | 2007.5 | 2008 | 2008.5 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 | 2016.5 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 | 2026 | 2027 | 2028 | 2029 | 2030
  • Manufacturer Part No: LF9080
  • Product Application: Cummins ISX Engines
  • Height: 16
  • Width: 6
  • Brand: Fleetguard
  • FAQ:
  • Part Number:
  • Manufacturer: Fleetguard
  • Beam Pattern:
  • Product Note:
